ThinkPad E14 Gen 7 IRL を買った
買ってから半年くらい経ってる気がする。主に実機が無いとわからなさそうな部分についてのメモ。
買ったのは以下のモデル
- ThinkPad E14 Gen 7 IRL (優先生産モデル)
- Part #:
21T9CTO1WW
参考ページ
- Lenovo サポートページ
- 購入時に調べた中で一番ちゃんとしていた記事
メモリ
32GB x2 の 64GB に交換したが問題なく認識した。
使ったのは Apacer FS64GACPKRK2 5600 FS.64GAC.PKRK2

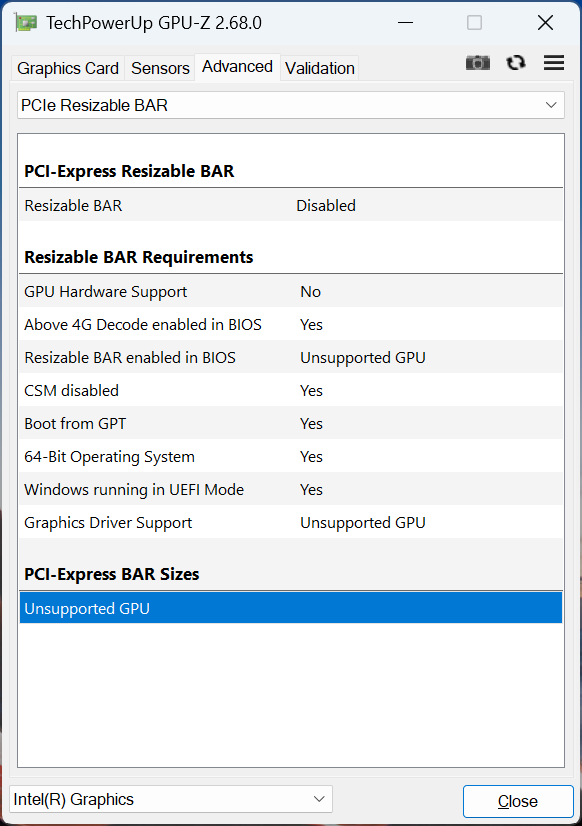

Resizable BAR
BIOS(UEFI) 的には対応しているように見える。実際は対応機材を繋いでみないと分からなさそう。
M.2 スロット
M2 スロットが 2 つあるが、取付可能なカードサイズが異なる。
- 2242 スロット
- PCIe Gen4
- 購入時の SSD(SKHynix 製 256GB)が取り付けられているのはこっち
- サーマルパッド (厚み 2.5mm) が最初から貼り付けられていた
- 2280 スロット
- PCIe Gen4
- サーマルパッド無し
- SSD 用に貼り付けるなら厚み 3.0mm くらい
- 2242 の SSD よりも取り付け位置が少し低い

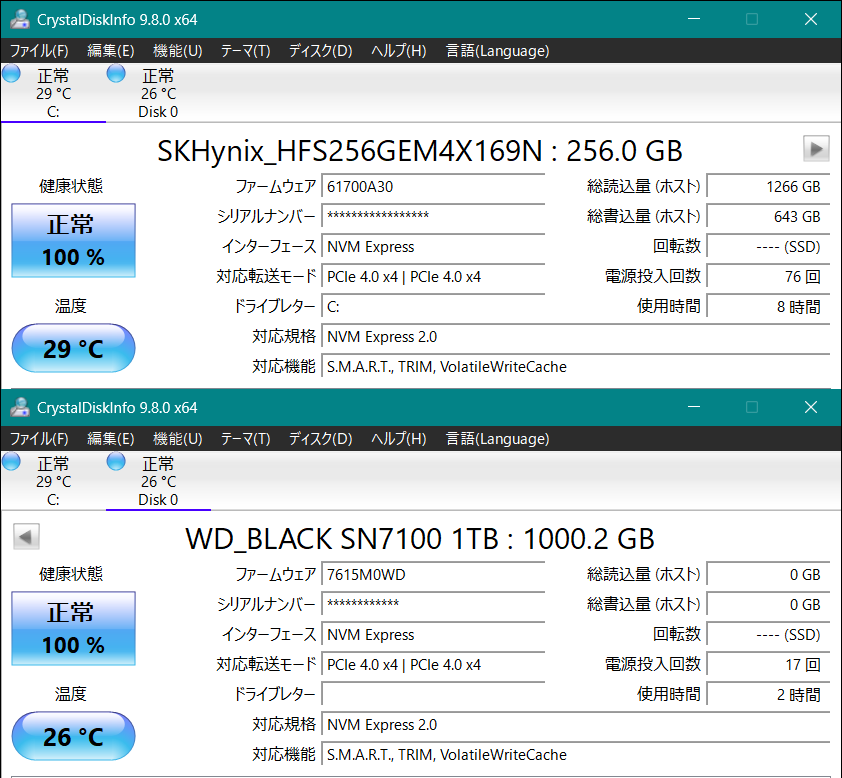

両方のスロットに Gen4 SSD を取り付けて CrystalDiskInfo で表示したもの。どちらも Gen4 x4 でリンクアップしている。
指紋センサー
自分が買ったモデルに使われていたのは Goodix MOC Fingerprint
デバイスマネージャーで見ると USB 接続っぽい。(VID:27C6, PID:659A)
サポートページで提供されているドライバを見ると、モデルによっては別のメーカーのセンサーの可能性もあるみたい。

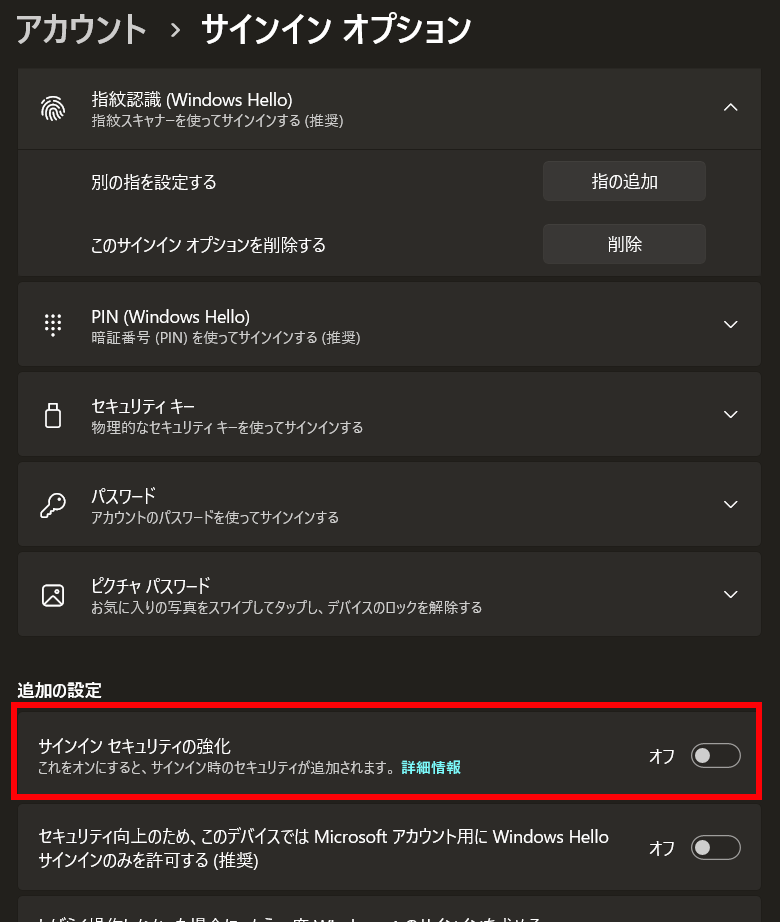

Goodix 製指紋センサーの場合、「サインイン セキュリティの強化」(Windows Hello ESS) を有効にすると指紋センサーが利用できなくなるので注意。
この機種向けの文章ではないが、以下のような文章がページがあった。 https://support.lenovo.com/jp/ja/product_security/ps500608-fingerprint-reader-vulnerabilities
Goodix 製の指紋センサーを搭載したデバイスの場合は、ドライバーを、下記の「影響を受ける製品」に記載されているお使いの機種のバージョン（またはそれ以降）に更新してください。 Goodix 製の指紋センサーでは ESS を有効にする必要はありません。
「有効にする必要がない」と「非対応」は別の話な気はするが、現状では指紋センサーを利用する為には ESS を無効にする必要がある。

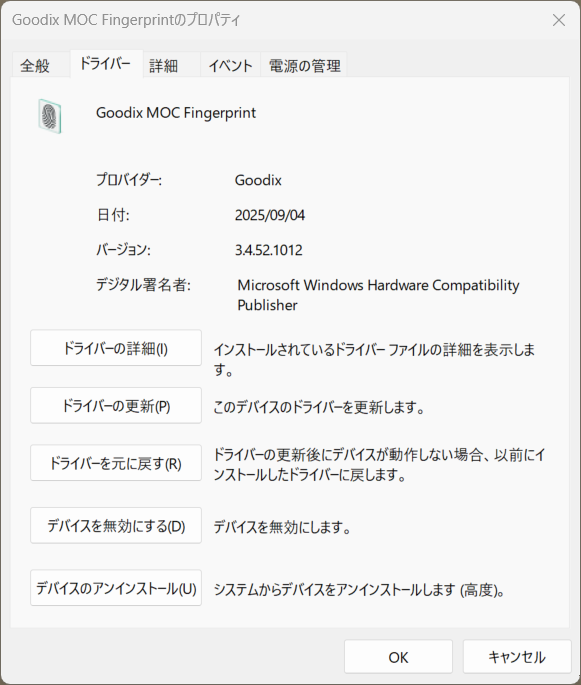

このエントリを書いた時点でのドライババージョンは 3.4.52.1012
株式会社はてなに入社しました
株式会社はてなに入社しました
株式会社はてなに入社しました
株式会社はてなに入社しました
Sophos XG 135
参考
概要
- CPU: Atom C3558
- Intel Atom® プロセッサー C3558
- 4C/4T
- ハードウェア Intel QAT 搭載
- STHの記事 によれば Gen2
- メモリ: DDR4 2133 DIMM 6GB
- 標準では 4GB + 2GB の構成
- 2 slots
- SSD: 64GB
- ADATA IM2S3134N M.2 2242 SSD(SATA)
- M.2 スロットは b-key でスロット自体も SATA のみ
- 実際に NVMe のカードを挿しても認識せず
- NIC: RJ45 x8 + SFP x1
- Intel I211 x4
- Intel X553 x4
- Intel I210(SFP) x1
- HDMI
- USB 2.0 x2
- ハードウェア的には USB 3.0 にも対応しているようだが、コネクタ・ピンヘッダ共に存在せず
- シリアルコンソール RJ45 x1
- その他 MB 上にコネクタ・ピンヘッダがあるもの
- PCI Express x4
- 独自ピンアサインの mini PCIe らしいとのこと

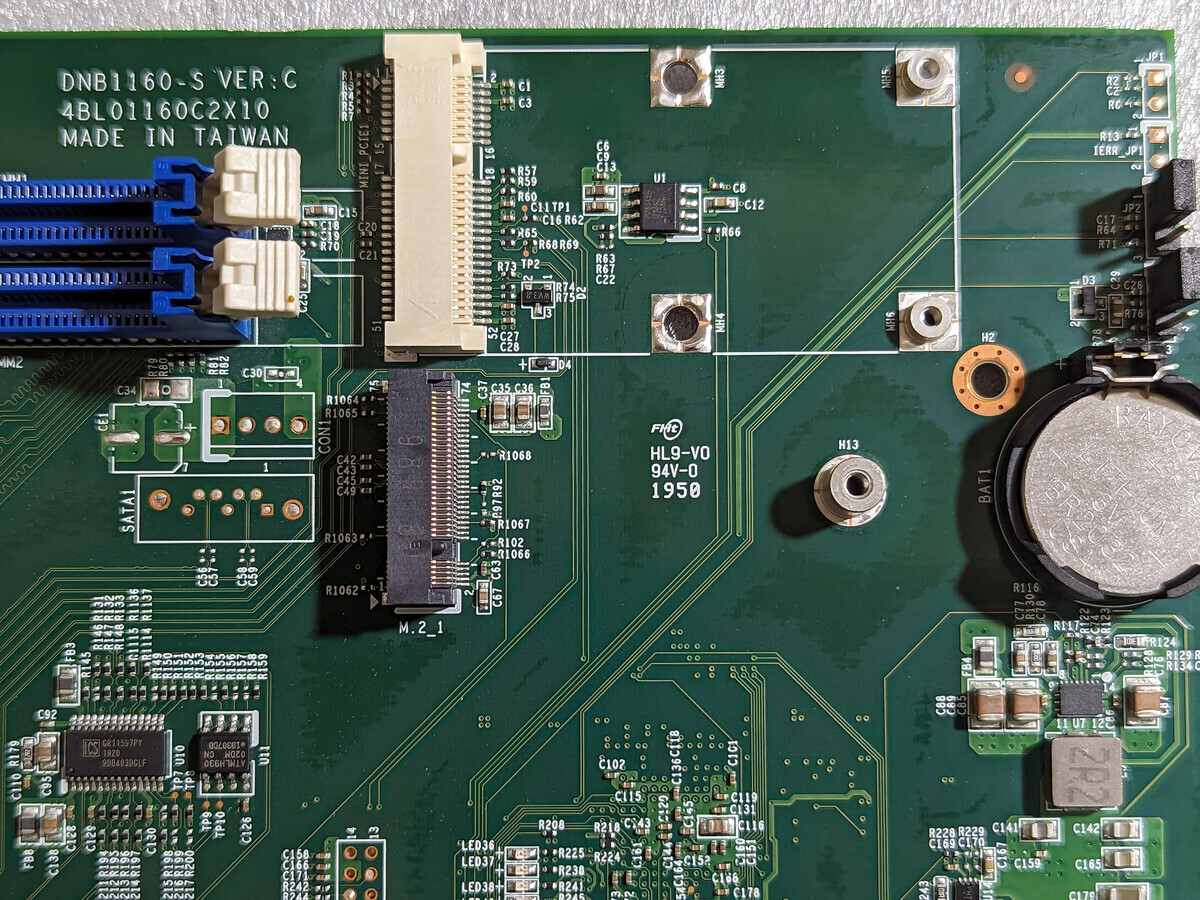

- mini PCIe

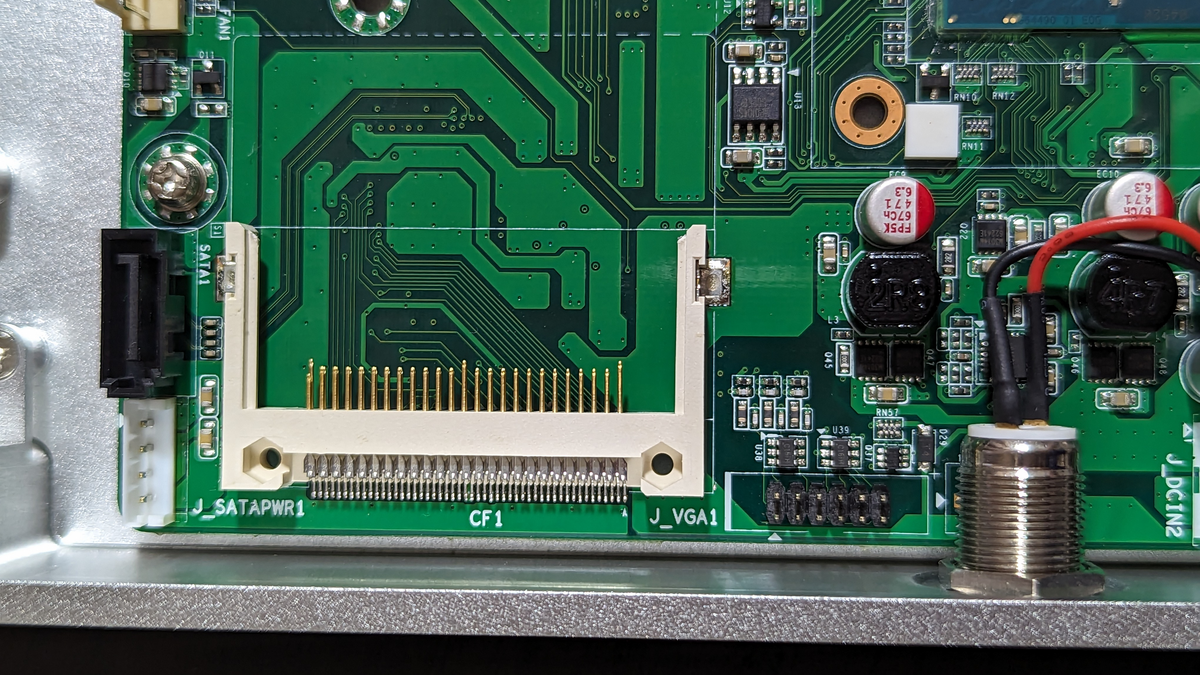

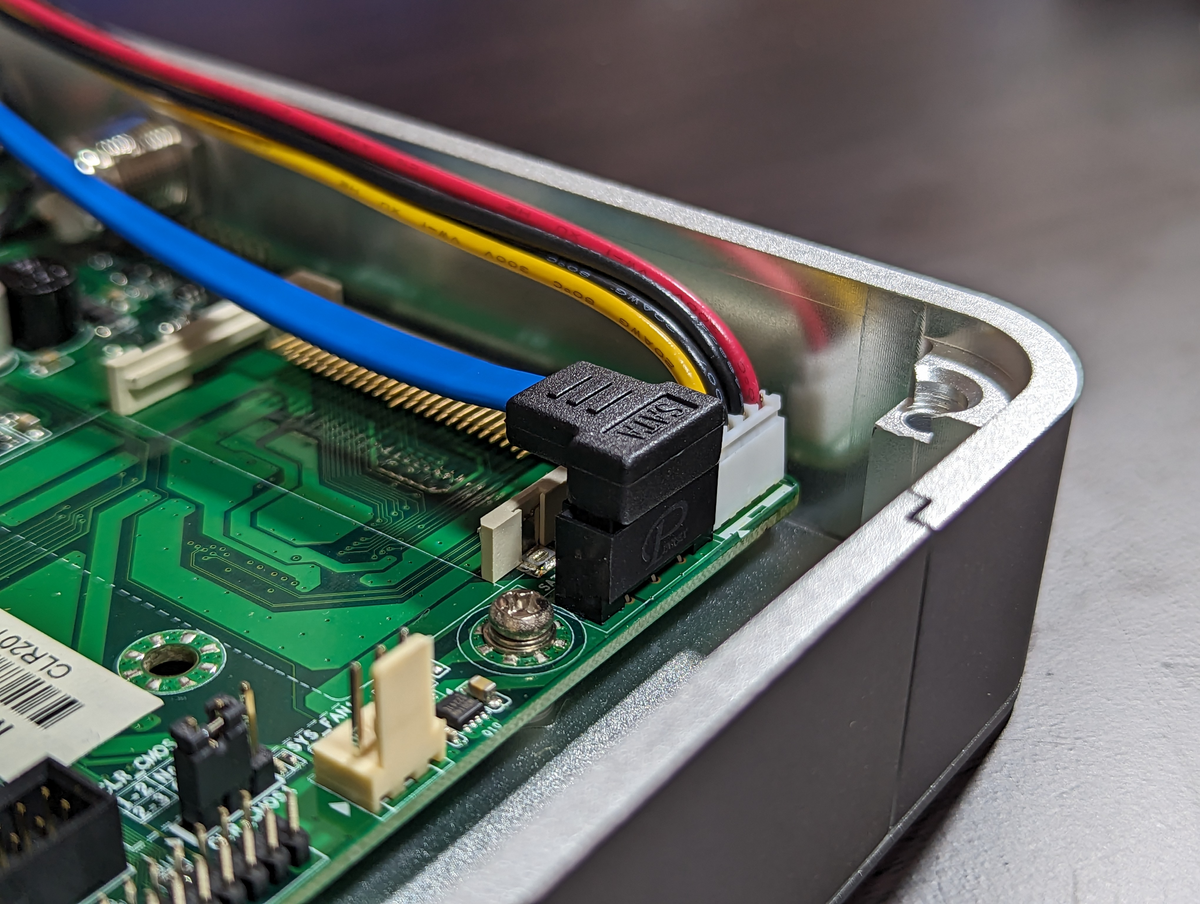

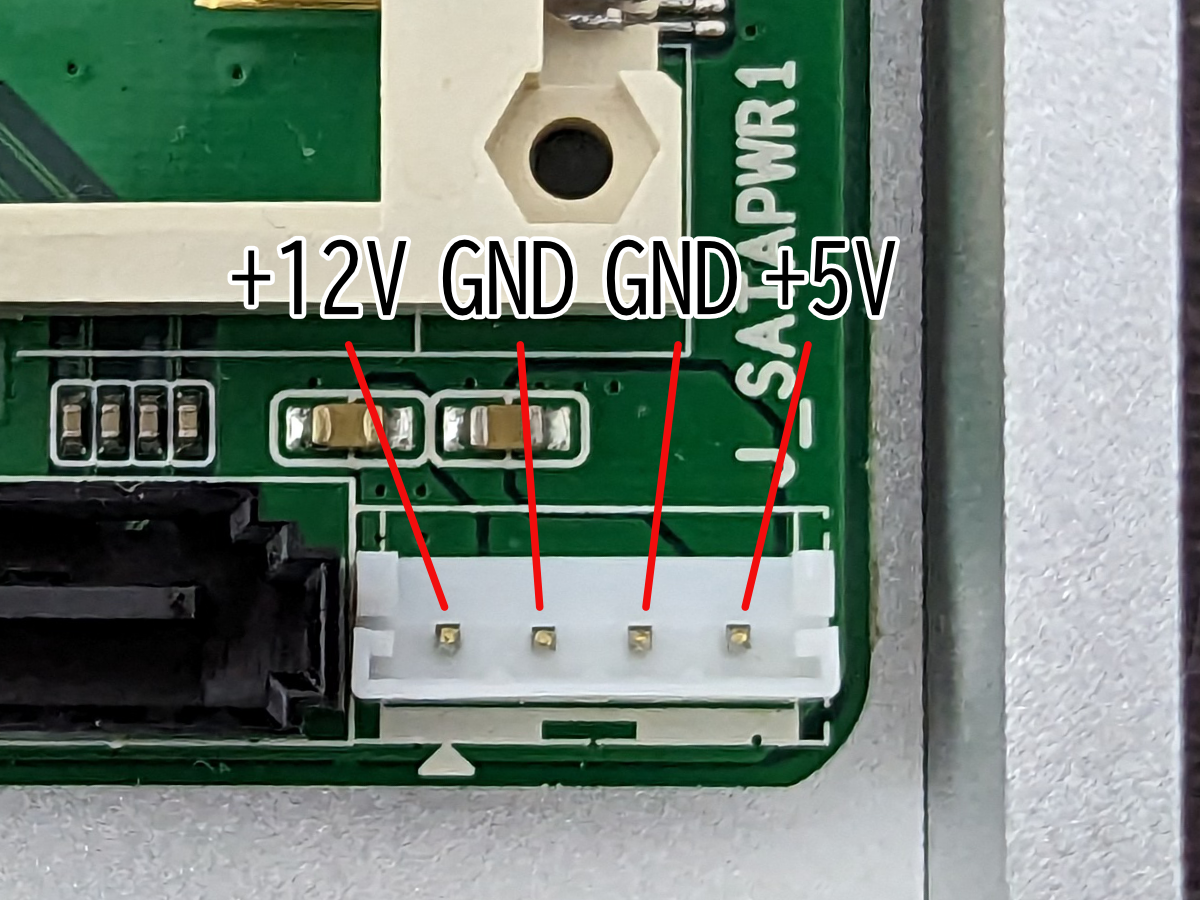

- SATA ポートと電源コネクタ
- パターンのみ
- TPM
- それらしき印字とピンヘッダがある(未確認)
- 2nd FAN(4ピン)
- ピンヘッダは未実装だが、周りの部品は全て実装されているように見える
- PCI Express x4
- 電源: 12V/3A x2
- ネジロック対応コネクタ
- 対応するコネクタは 5.5x2.5mm

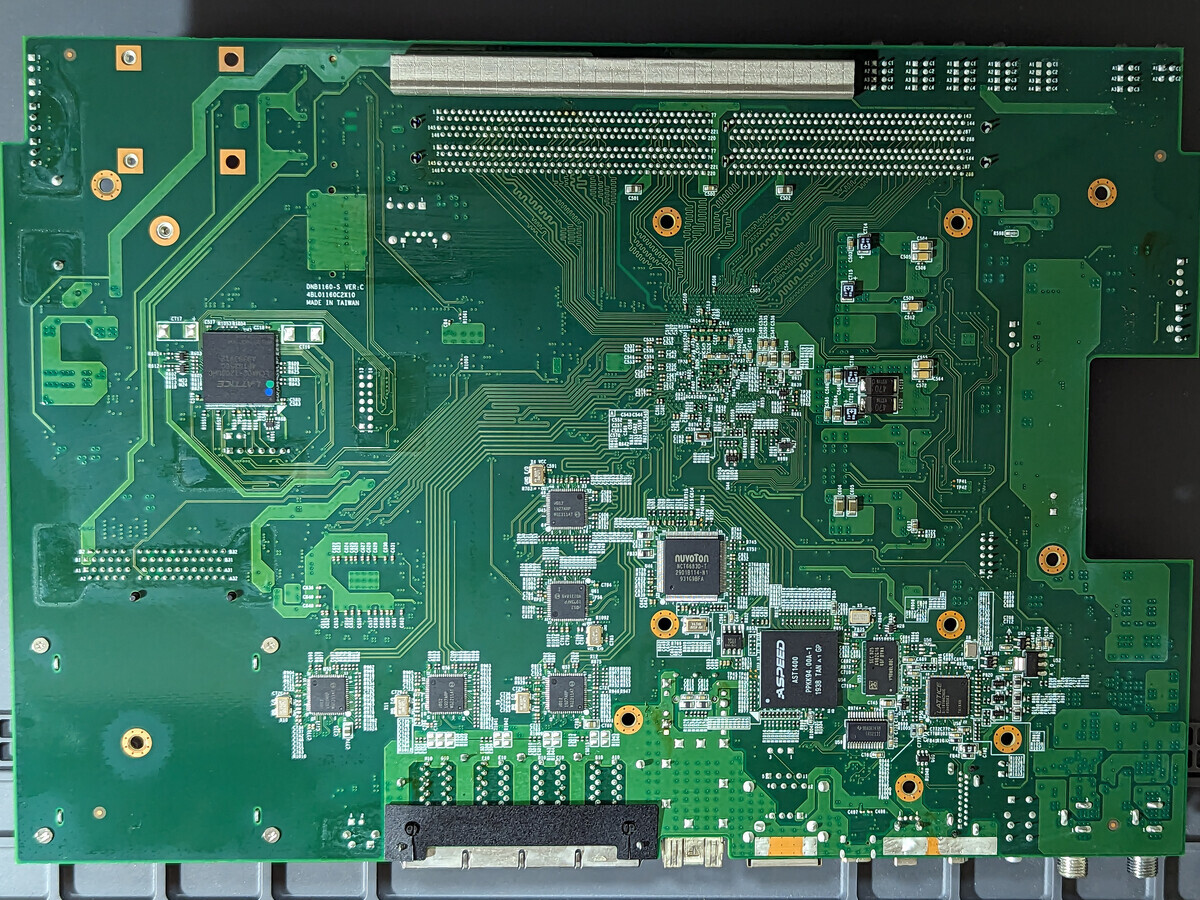

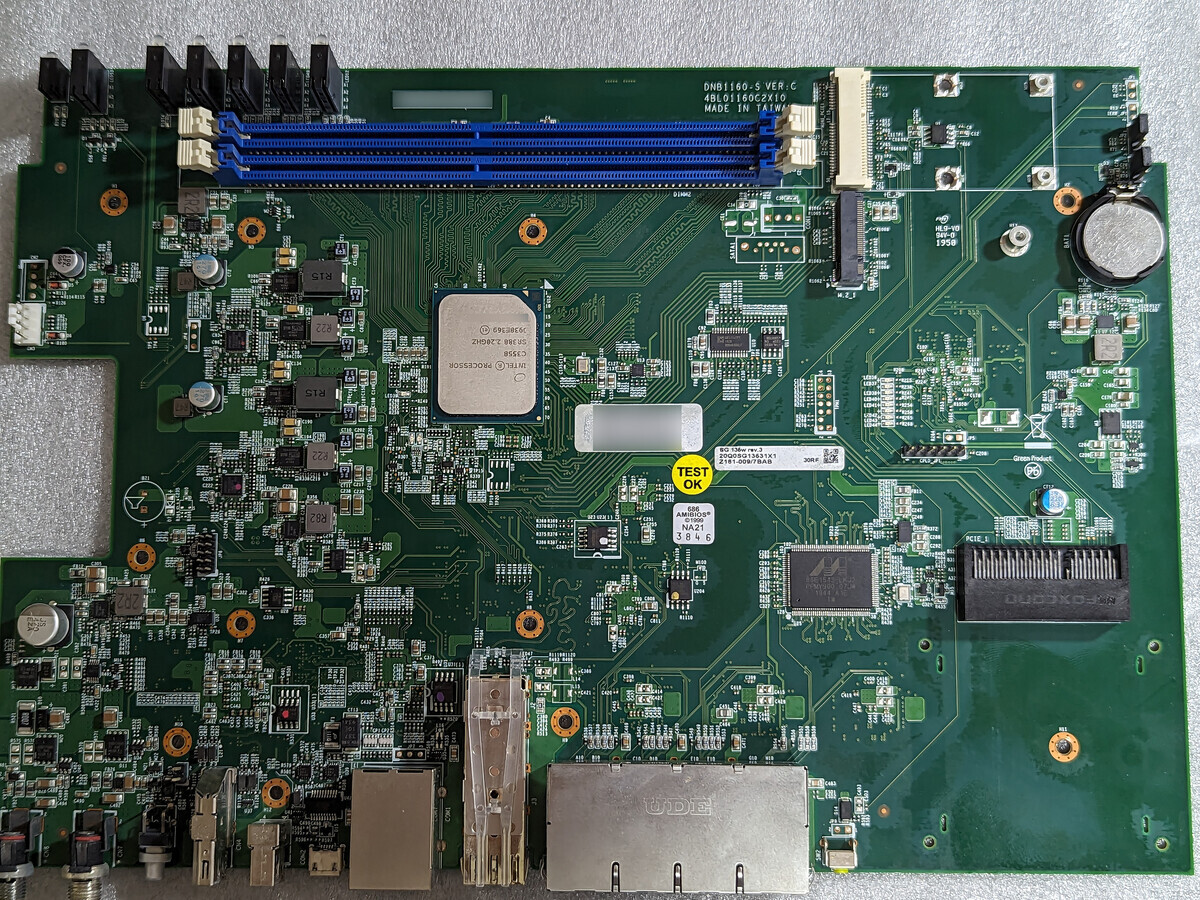

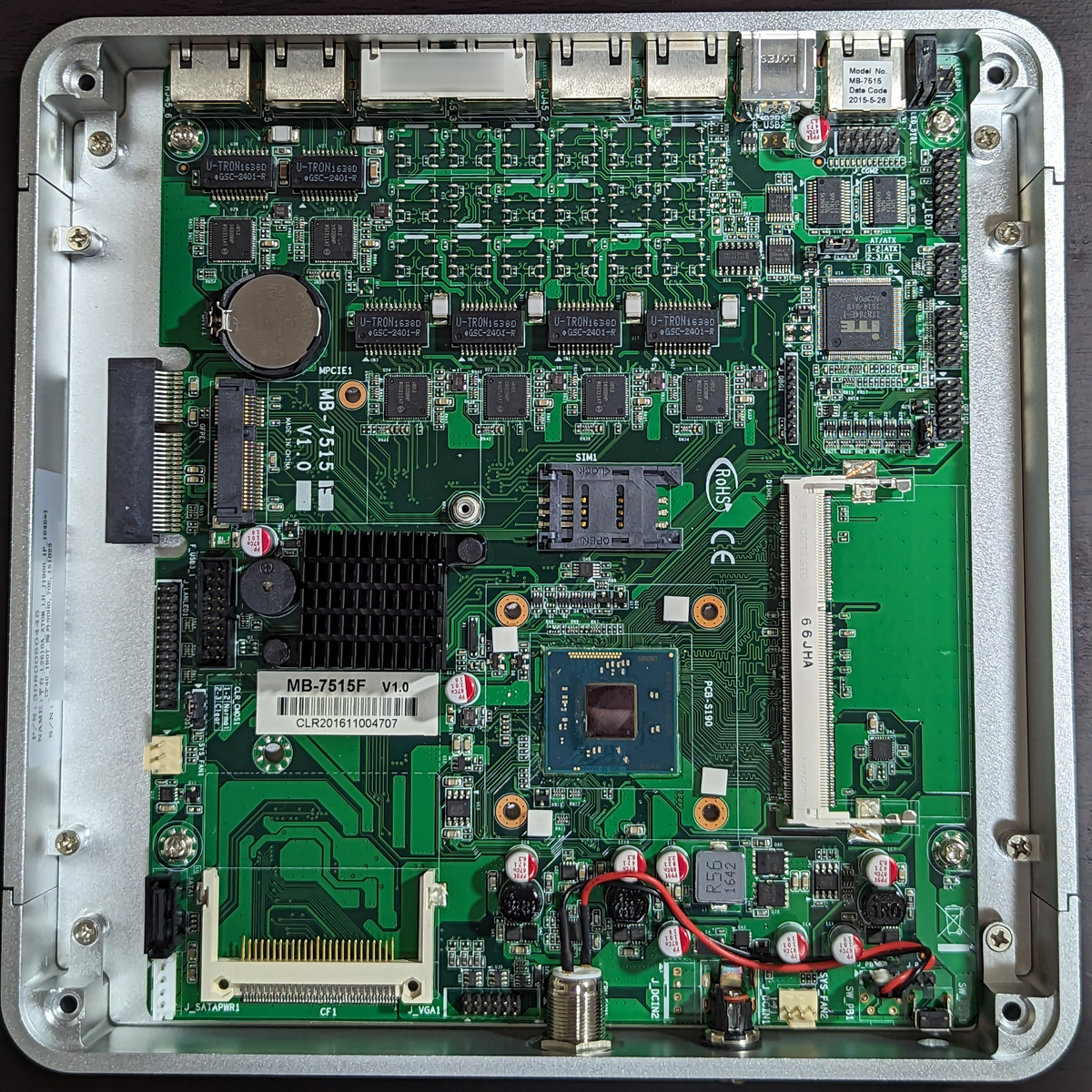

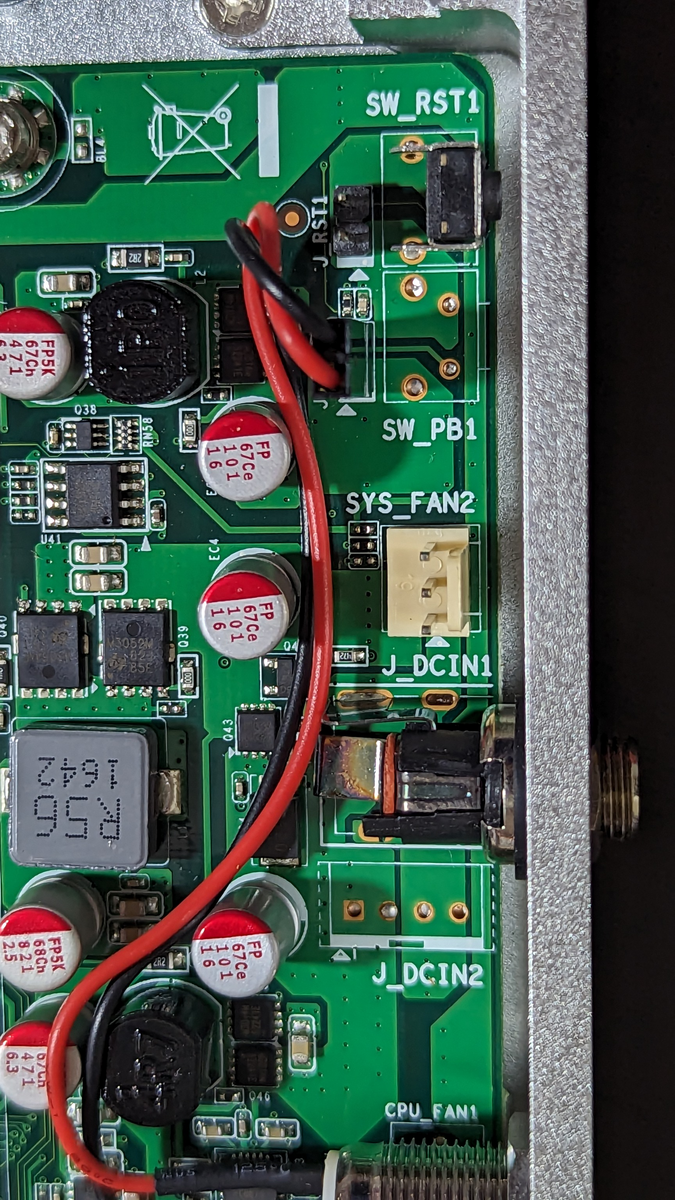

写真

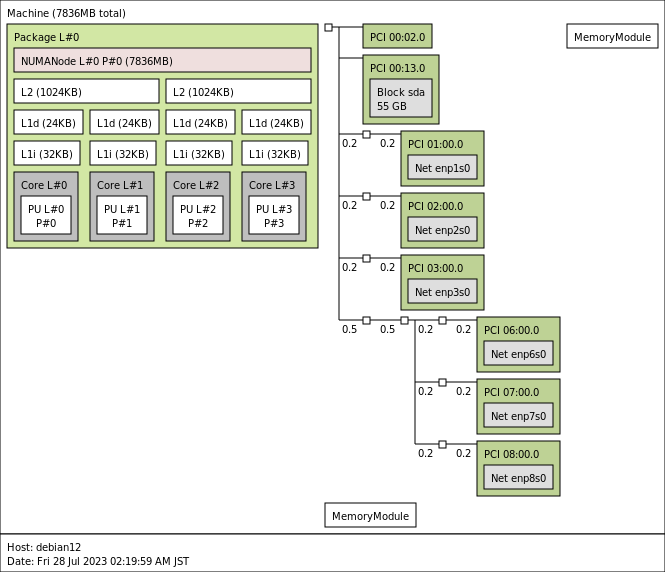

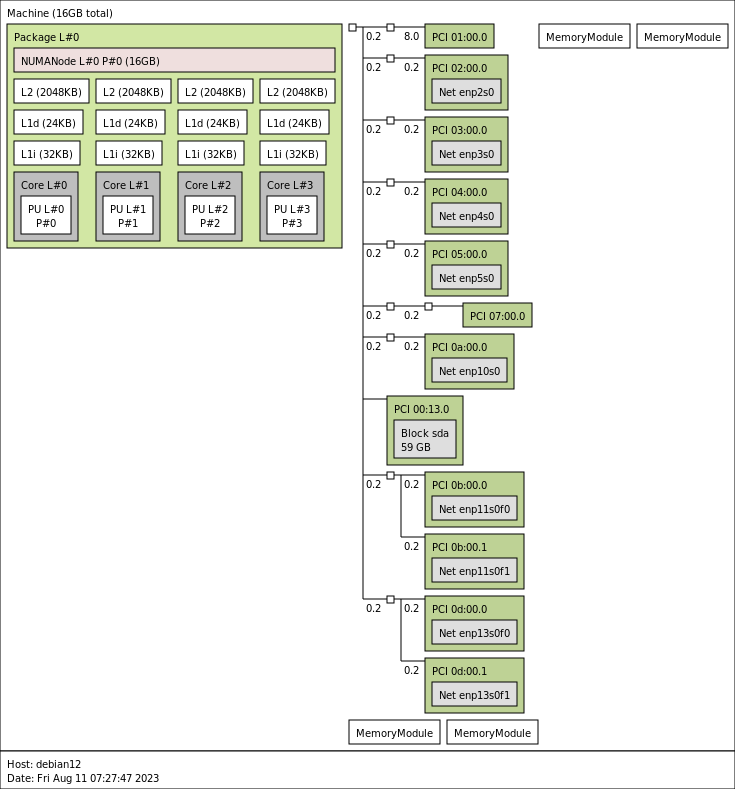

Linux(Debian12) での認識
コマンドの出力結果は長いので折りたたみ
lspci
lspci -t -v
-[0000:00]-+-00.0 Intel Corporation Atom Processor C3000 Series System Agent
+-04.0 Intel Corporation Atom Processor C3000 Series Error Registers
+-05.0 Intel Corporation Atom Processor C3000 Series Root Complex Event Collector
+-06.0-[01]----00.0 Intel Corporation Atom Processor C3000 Series QuickAssist Technology
+-09.0-[02]----00.0 Intel Corporation I211 Gigabit Network Connection
+-0a.0-[03]----00.0 Intel Corporation I211 Gigabit Network Connection
+-0b.0-[04]----00.0 Intel Corporation I211 Gigabit Network Connection
+-0c.0-[05]----00.0 Intel Corporation I211 Gigabit Network Connection
+-0e.0-[06-07]----00.0-[07]----00.0 ASPEED Technology, Inc. ASPEED Graphics Family
+-0f.0-[08]--
+-10.0-[09]--
+-11.0-[0a]----00.0 Intel Corporation I210 Gigabit Fiber Network Connection
+-12.0 Intel Corporation Atom Processor C3000 Series SMBus Contoller - Host
+-13.0 Intel Corporation Atom Processor C3000 Series SATA Controller 0
+-15.0 Intel Corporation Atom Processor C3000 Series USB 3.0 xHCI Controller
+-16.0-[0b-0c]--+-00.0 Intel Corporation Ethernet Connection X553 1GbE
| \-00.1 Intel Corporation Ethernet Connection X553 1GbE
+-17.0-[0d-0e]--+-00.0 Intel Corporation Ethernet Connection X553 1GbE
| \-00.1 Intel Corporation Ethernet Connection X553 1GbE
+-18.0 Intel Corporation Atom Processor C3000 Series ME HECI 1
+-1f.0 Intel Corporation Atom Processor C3000 Series LPC or eSPI
+-1f.2 Intel Corporation Atom Processor C3000 Series Power Management Controller
+-1f.4 Intel Corporation Atom Processor C3000 Series SMBus controller
\-1f.5 Intel Corporation Atom Processor C3000 Series SPI Controller
lspci -vv
00:00.0 Host bridge: Intel Corporation Atom Processor C3000 Series System Agent (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series System Agent
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
IOMMU group: 0
00:04.0 Host bridge: Intel Corporation Atom Processor C3000 Series Error Registers (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series Error Registers
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 1
Capabilities: [40] Express (v2) Root Complex Integrated Endpoint, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag- RBE- FLReset-
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
00:05.0 Generic system peripheral [0807]: Intel Corporation Atom Processor C3000 Series Root Complex Event Collector (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series Root Complex Event Collector
Control: I/O- Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 25
IOMMU group: 2
Capabilities: [40] Express (v2) Root Complex Event Collector, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
RootCap: CRSVisible-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00218 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq+ ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [150 v1] Root Complex Event Collector Endpoint Association
RCiEPBitmap: RCiEP at Device(s): 5, 18
Kernel driver in use: pcieport
00:06.0 PCI bridge: Intel Corporation Atom Processor C3000 Series Integrated QAT Root Port (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series Integrated QAT Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 26
IOMMU group: 3
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: f000-0fff [disabled] [16-bit]
Memory behind bridge: dd200000-dd2fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #17, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd+
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series Integrated QAT Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00258 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
00:09.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #0 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 27
IOMMU group: 4
Region 0: Memory at dd3e0000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
I/O behind bridge: d000-dfff [size=4K] [16-bit]
Memory behind bridge: dd100000-dd1fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #9, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00278 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 02000004 00000f00 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:0a.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #1 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 28
IOMMU group: 5
Region 0: Memory at dd3c0000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
I/O behind bridge: c000-cfff [size=4K] [16-bit]
Memory behind bridge: dd000000-dd0fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #10, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee002b8 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 03000004 00000f00 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:0b.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #2 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 29
IOMMU group: 6
Region 0: Memory at dd3a0000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=04, subordinate=04, sec-latency=0
I/O behind bridge: b000-bfff [size=4K] [16-bit]
Memory behind bridge: dcf00000-dcffffff [size=1M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #11, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee002f8 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 04000004 00000800 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:0c.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #3 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 30
IOMMU group: 7
Region 0: Memory at dd380000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=05, subordinate=05, sec-latency=0
I/O behind bridge: a000-afff [size=4K] [16-bit]
Memory behind bridge: dce00000-dcefffff [size=1M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #12, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00338 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 05000004 00000f00 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:0e.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #4 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 31
IOMMU group: 8
Region 0: Memory at dd360000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=06, subordinate=07, sec-latency=0
I/O behind bridge: 9000-9fff [size=4K] [16-bit]
Memory behind bridge: d8000000-dc0fffff [size=65M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA+ VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #14, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00378 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 07000004 00000f00 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:0f.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #5 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 32
IOMMU group: 9
Region 0: Memory at dd340000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=08, subordinate=08, sec-latency=0
I/O behind bridge: f000-0fff [disabled] [16-bit]
Memory behind bridge: fff00000-000fffff [disabled] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 1024 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #15, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x0
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 65ms to 210ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D3 NoSoftRst+ PME-Enable+ DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee003b8 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:10.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #6 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 33
IOMMU group: 10
Region 0: Memory at dd320000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=09, subordinate=09, sec-latency=0
I/O behind bridge: f000-0fff [disabled] [16-bit]
Memory behind bridge: fff00000-000fffff [disabled] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 1024 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #16, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x0
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 65ms to 210ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D3 NoSoftRst+ PME-Enable+ DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee003f8 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:11.0 PCI bridge: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #7 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 34
IOMMU group: 11
Region 0: Memory at dd300000 (64-bit, non-prefetchable) [size=128K]
Bus: primary=00, secondary=0a, subordinate=0a, sec-latency=0
I/O behind bridge: 8000-8fff [size=4K] [16-bit]
Memory behind bridge: dcb00000-dcdfffff [size=3M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #17, Speed 8GT/s, Width x1, ASPM not supported
ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP+ LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series PCI Express Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00418 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap+
HeaderLog: 4a000001 0a000004 00000f00 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Capabilities: [150 v1] Multicast
McastCap: MaxGroups 16, ECRCRegen-
McastCtl: NumGroups 1, Enable-
McastBAR: IndexPos 12, BaseAddr 0000000000000000
McastReceiveVec: 0000000000000000
McastBlockAllVec: 0000000000000000
McastBlockUntransVec: 0000000000000000
McastOverlayBAR: OverlaySize 0 (disabled), BaseAddr 0000000000000000
Capabilities: [180 v1] Vendor Specific Information: ID=0003 Rev=0 Len=00a <?>
Capabilities: [190 v1] Downstream Port Containment
DpcCap: INT Msg #0, RPExt+ PoisonedTLP+ SwTrigger+ RP PIO Log 4, DL_ActiveErr+
DpcCtl: Trigger:1 Cmpl- INT+ ErrCor- PoisonedTLP- SwTrigger- DL_ActiveErr-
DpcSta: Trigger- Reason:00 INT- RPBusy- TriggerExt:00 RP PIO ErrPtr:1f
Source: 0000
Capabilities: [1d0 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=40us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=0ns
L1SubCtl2: T_PwrOn=0us
Capabilities: [200 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: pcieport
00:12.0 System peripheral: Intel Corporation Atom Processor C3000 Series SMBus Contoller - Host (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series SMBus Contoller - Host
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 37
IOMMU group: 12
Region 0: Memory at dd41a000 (64-bit, non-prefetchable) [size=1K]
Capabilities: [40] Express (v2) Root Complex Integrated Endpoint, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag- RBE+ FLReset+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
DevCap2: Completion Timeout: Not Supported, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00478 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Kernel driver in use: ismt_smbus
Kernel modules: i2c_ismt
00:13.0 SATA controller: Intel Corporation Atom Processor C3000 Series SATA Controller 0 (rev 11) (prog-if 01 [AHCI 1.0])
Subsystem: Intel Corporation Atom Processor C3000 Series SATA Controller 0
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 20
IOMMU group: 13
Region 0: Memory at dd414000 (32-bit, non-prefetchable) [size=8K]
Region 1: Memory at dd419000 (32-bit, non-prefetchable) [size=256]
Region 2: I/O ports at e050 [size=8]
Region 3: I/O ports at e040 [size=4]
Region 4: I/O ports at e020 [size=32]
Region 5: Memory at dd418000 (32-bit, non-prefetchable) [size=2K]
Capabilities: [80] MSI: Enable- Count=1/1 Maskable- 64bit-
Address: 00000000 Data: 0000
Capabilities: [70] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [a8] SATA HBA v1.0 BAR4 Offset=00000004
Capabilities: [d0] MSI-X: Enable+ Count=8 Masked-
Vector table: BAR=0 offset=00000000
PBA: BAR=1 offset=00000000
Kernel driver in use: ahci
Kernel modules: ahci
00:15.0 USB controller: Intel Corporation Atom Processor C3000 Series USB 3.0 xHCI Controller (rev 11) (prog-if 30 [XHCI])
Subsystem: Intel Corporation Atom Processor C3000 Series USB 3.0 xHCI Controller
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 43
IOMMU group: 14
Region 0: Memory at dd400000 (64-bit, non-prefetchable) [size=64K]
Capabilities: [70] Power Management version 2
Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0-,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] MSI: Enable+ Count=1/8 Maskable- 64bit+
Address: 00000000fee00538 Data: 0000
Kernel driver in use: xhci_hcd
Kernel modules: xhci_pci
00:16.0 PCI bridge: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port #0 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 35
IOMMU group: 15
Bus: primary=00, secondary=0b, subordinate=0c, sec-latency=0
I/O behind bridge: f000-0fff [disabled] [16-bit]
Memory behind bridge: dc600000-dcafffff [size=5M] [32-bit]
Prefetchable memory behind bridge: dfa00000-dfefffff [size=5M] [32-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #17, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd+
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00438 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
00:17.0 PCI bridge: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port #1 (rev 11) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 36
IOMMU group: 16
Bus: primary=00, secondary=0d, subordinate=0e, sec-latency=0
I/O behind bridge: f000-0fff [disabled] [16-bit]
Memory behind bridge: dc100000-dc5fffff [size=5M] [32-bit]
Prefetchable memory behind bridge: df400000-df8fffff [size=5M] [32-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot-), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #17, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
RootCap: CRSVisible+
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd+
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCap2: Supported Link Speeds: 2.5GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [88] Subsystem: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable+ 64bit-
Address: fee00458 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
RootCmd: CERptEn+ NFERptEn+ FERptEn+
RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
Capabilities: [138 v1] Access Control Services
ACSCap: SrcValid+ TransBlk+ ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans+
ACSCtl: SrcValid+ TransBlk- ReqRedir+ CmpltRedir+ UpstreamFwd+ EgressCtrl- DirectTrans-
Kernel driver in use: pcieport
00:18.0 Communication controller: Intel Corporation Atom Processor C3000 Series ME HECI 1 (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series ME HECI 1
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 255
IOMMU group: 17
Region 0: Memory at dd417000 (64-bit, non-prefetchable) [size=4K]
Capabilities: [50] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [8c] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
00:1f.0 ISA bridge: Intel Corporation Atom Processor C3000 Series LPC or eSPI (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series LPC or eSPI
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
IOMMU group: 18
00:1f.2 Memory controller: Intel Corporation Atom Processor C3000 Series Power Management Controller (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series Power Management Controller
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 18
Region 0: Memory at dd410000 (32-bit, non-prefetchable) [disabled] [size=16K]
00:1f.4 SMBus: Intel Corporation Atom Processor C3000 Series SMBus controller (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series SMBus controller
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 23
IOMMU group: 18
Region 0: Memory at dd416000 (64-bit, non-prefetchable) [size=256]
Region 4: I/O ports at e000 [size=32]
Kernel driver in use: i801_smbus
Kernel modules: i2c_i801
00:1f.5 Serial bus controller: Intel Corporation Atom Processor C3000 Series SPI Controller (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series SPI Controller
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 18
Region 0: Memory at fe010000 (32-bit, non-prefetchable) [size=4K]
01:00.0 Co-processor: Intel Corporation Atom Processor C3000 Series QuickAssist Technology (rev 11)
Subsystem: Intel Corporation Atom Processor C3000 Series QuickAssist Technology
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
IOMMU group: 19
Region 2: Memory at dd240000 (64-bit, non-prefetchable) [size=256K]
Region 4: Memory at dd200000 (64-bit, non-prefetchable) [size=256K]
Capabilities: [b0] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [60] MSI-X: Enable+ Count=17 Masked-
Vector table: BAR=2 offset=0003b000
PBA: BAR=2 offset=0003b800
Capabilities: [6c] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [74] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 16384 bytes, PhantFunc 0, Latency L0s <128ns, L1 <1us
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr+ FatalErr- UnsupReq+ AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x16, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x16
TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range B, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-5GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 14, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 80a0007c 00001a03 05000001
Capabilities: [138 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 0
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [140 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq-
IOVSta: Migration-
Initial VFs: 16, Total VFs: 16, Number of VFs: 0, Function Dependency Link: 00
VF offset: 8, stride: 1, Device ID: 19e3
Supported Page Size: 00000553, System Page Size: 00000001
Region 0: Memory at 00000000dd290000 (64-bit, non-prefetchable)
Region 2: Memory at 00000000dd280000 (64-bit, non-prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1b0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: c3xxx
Kernel modules: qat_c3xxx
02:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
IOMMU group: 20
Region 0: Memory at dd100000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at d000 [disabled] [size=32]
Region 3: Memory at dd120000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 17
IOMMU group: 21
Region 0: Memory at dd000000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at c000 [disabled] [size=32]
Region 3: Memory at dd020000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #1, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
04:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
IOMMU group: 22
Region 0: Memory at dcf00000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at b000 [disabled] [size=32]
Region 3: Memory at dcf20000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #2, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 19
IOMMU group: 23
Region 0: Memory at dce00000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at a000 [disabled] [size=32]
Region 3: Memory at dce20000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #3, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
06:00.0 PCI bridge: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge (rev 03) (prog-if 00 [Normal decode])
Subsystem: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
IOMMU group: 24
Bus: primary=06, secondary=07, subordinate=07, sec-latency=32
I/O behind bridge: 9000-9fff [size=4K] [16-bit]
Memory behind bridge: d8000000-dc0fffff [size=65M] [32-bit]
Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled] [64-bit]
Secondary status: 66MHz+ FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA+ VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] Express (v1) PCI-Express to PCI/PCI-X Bridge, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE- SlotPowerLimit 10W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ BrConfRtry-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
Capabilities: [a4] Subsystem: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01
Status: NegoPending- InProgress-
Capabilities: [800 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
07:00.0 VGA compatible controller: ASPEED Technology, Inc. ASPEED Graphics Family (rev 30) (prog-if 00 [VGA controller])
Subsystem: ASPEED Technology, Inc. ASPEED Graphics Family
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 20
IOMMU group: 24
Region 0: Memory at d8000000 (32-bit, non-prefetchable) [size=64M]
Region 1: Memory at dc000000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at 9000 [size=128]
Expansion ROM at 000c0000 [virtual] [disabled] [size=128K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] MSI: Enable- Count=1/4 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Kernel driver in use: ast
Kernel modules: ast
0a:00.0 Ethernet controller: Intel Corporation I210 Gigabit Fiber Network Connection (rev 03)
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 23
IOMMU group: 25
Region 0: Memory at dcc00000 (32-bit, non-prefetchable) [size=1M]
Region 2: I/O ports at 8000 [disabled] [size=32]
Region 3: Memory at dcd00000 (32-bit, non-prefetchable) [size=16K]
Expansion ROM at dcb00000 [disabled] [size=1M]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #3, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
0b:00.0 Ethernet controller: Intel Corporation Ethernet Connection X553 1GbE (rev 11)
Subsystem: Intel Corporation Ethernet Connection X553 1GbE
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
IOMMU group: 26
Region 0: Memory at dfc00000 (64-bit, prefetchable) [size=2M]
Region 4: Memory at dfe04000 (64-bit, prefetchable) [size=16K]
Expansion ROM at dc680000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=4 offset=00000000
PBA: BAR=4 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [150 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 1
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [160 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq-
IOVSta: Migration-
Initial VFs: 64, Total VFs: 64, Number of VFs: 0, Function Dependency Link: 00
VF offset: 128, stride: 2, Device ID: 15c5
Supported Page Size: 00000553, System Page Size: 00000001
Region 0: Memory at 00000000dca00000 (64-bit, non-prefetchable)
Region 3: Memory at 00000000dc900000 (64-bit, non-prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1b0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: ixgbe
Kernel modules: ixgbe
0b:00.1 Ethernet controller: Intel Corporation Ethernet Connection X553 1GbE (rev 11)
Subsystem: Intel Corporation Ethernet Connection X553 1GbE
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 17
IOMMU group: 27
Region 0: Memory at dfa00000 (64-bit, prefetchable) [size=2M]
Region 4: Memory at dfe00000 (64-bit, prefetchable) [size=16K]
Expansion ROM at dc600000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=4 offset=00000000
PBA: BAR=4 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [150 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 0
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [160 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy- 10BitTagReq-
IOVSta: Migration-
Initial VFs: 64, Total VFs: 64, Number of VFs: 0, Function Dependency Link: 01
VF offset: 128, stride: 2, Device ID: 15c5
Supported Page Size: 00000553, System Page Size: 00000001
Region 0: Memory at 00000000dc800000 (64-bit, non-prefetchable)
Region 3: Memory at 00000000dc700000 (64-bit, non-prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1b0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: ixgbe
Kernel modules: ixgbe
0d:00.0 Ethernet controller: Intel Corporation Ethernet Connection X553 1GbE (rev 11)
Subsystem: Intel Corporation Ethernet Connection X553 1GbE
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
IOMMU group: 28
Region 0: Memory at df600000 (64-bit, prefetchable) [size=2M]
Region 4: Memory at df804000 (64-bit, prefetchable) [size=16K]
Expansion ROM at dc180000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=4 offset=00000000
PBA: BAR=4 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [150 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 1
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [160 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq-
IOVSta: Migration-
Initial VFs: 64, Total VFs: 64, Number of VFs: 0, Function Dependency Link: 00
VF offset: 128, stride: 2, Device ID: 15c5
Supported Page Size: 00000553, System Page Size: 00000001
Region 0: Memory at 00000000dc500000 (64-bit, non-prefetchable)
Region 3: Memory at 00000000dc400000 (64-bit, non-prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1b0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: ixgbe
Kernel modules: ixgbe
0d:00.1 Ethernet controller: Intel Corporation Ethernet Connection X553 1GbE (rev 11)
Subsystem: Intel Corporation Ethernet Connection X553 1GbE
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 17
IOMMU group: 29
Region 0: Memory at df400000 (64-bit, prefetchable) [size=2M]
Region 4: Memory at df800000 (64-bit, prefetchable) [size=16K]
Expansion ROM at dc100000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=4 offset=00000000
PBA: BAR=4 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 256 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM L0s L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 260ms to 900ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [150 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 0
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [160 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy- 10BitTagReq-
IOVSta: Migration-
Initial VFs: 64, Total VFs: 64, Number of VFs: 0, Function Dependency Link: 01
VF offset: 128, stride: 2, Device ID: 15c5
Supported Page Size: 00000553, System Page Size: 00000001
Region 0: Memory at 00000000dc300000 (64-bit, non-prefetchable)
Region 3: Memory at 00000000dc200000 (64-bit, non-prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1b0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: ixgbe
Kernel modules: ixgbe
lshw
lshw -sanitize -notime
computer
description: Desktop Computer
product: XG (Default string)
vendor: Sophos
version: 135r3
serial: [REMOVED]
width: 64 bits
capabilities: smbios-3.0.0 dmi-3.0.0 smp vsyscall32
configuration: boot=normal chassis=desktop family=Default string sku=Default string uuid=[REMOVED]
*-core
description: Motherboard
product: Default string
vendor: Default string
physical id: 0
version: Default string
serial: [REMOVED]
slot: Default string
*-firmware
description: BIOS
vendor: American Megatrends Inc.
physical id: 0
version: 5.13 (Z161-009)
date: 08/09/2018
size: 64KiB
capacity: 8MiB
capabilities: pci upgrade shadowing cdboot bootselect socketedrom edd int13floppy1200 int13floppy720 int13floppy2880 int5printscreen int14serial int17printer acpi usb biosbootspecification uefi
*-memory
description: System Memory
physical id: 28
slot: System board or motherboard
size: 16GiB
*-bank:0
description: DIMM DDR4 Synchronous Unbuffered (Unregistered) 2133 MHz (0.5 ns)
product: BLS8G4D32AESBK.M8FE
vendor: Crucial
physical id: 0
serial: [REMOVED]
slot: DIMM0
size: 8GiB
width: 8 bits
clock: 2133MHz (0.5ns)
*-bank:1
description: DIMM [empty]
product: NO DIMM
vendor: NO DIMM
physical id: 1
serial: [REMOVED]
slot: DIMM0
*-bank:2
description: DIMM DDR4 Synchronous Unbuffered (Unregistered) 2133 MHz (0.5 ns)
product: BLS8G4D32AESBK.M8FE
vendor: Crucial
physical id: 2
serial: [REMOVED]
slot: DIMM1
size: 8GiB
width: 8 bits
clock: 2133MHz (0.5ns)
*-bank:3
description: DIMM [empty]
product: NO DIMM
vendor: NO DIMM
physical id: 3
serial: [REMOVED]
slot: DIMM1
*-cache:0
description: L1 cache
physical id: 30
slot: L1-Cache
size: 56KiB
capacity: 56KiB
capabilities: synchronous internal write-back instruction
configuration: level=1
*-cache:1
description: L2 cache
physical id: 31
slot: L2-Cache
size: 2MiB
capacity: 2MiB
capabilities: synchronous internal write-back unified
configuration: level=2
*-cpu
description: CPU
product: Intel(R) Atom(TM) CPU C3558 @ 2.20GHz
vendor: Intel Corp.
physical id: 32
bus info: cpu@0
version: 6.95.1
slot: CPU0
size: 2200MHz
capacity: 3800MHz
width: 64 bits
clock: 100MHz
capabilities: lm fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp x86-64 constant_tsc art arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf tsc_known_freq pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 sdbg cx16 xtpr pdcm sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave rdrand lahf_lm 3dnowprefetch cpuid_fault epb cat_l2 ssbd ibrs ibpb stibp tpr_shadow vnmi flexpriority ept vpid ept_ad fsgsbase tsc_adjust smep erms mpx rdt_a rdseed smap clflushopt intel_pt sha_ni xsaveopt xsavec xgetbv1 xsaves dtherm arat pln pts md_clear arch_capabilities
configuration: cores=4 enabledcores=4 microcode=56 threads=4
*-pci:0
description: Host bridge
product: Atom Processor C3000 Series System Agent
vendor: Intel Corporation
physical id: 100
bus info: pci@0000:00:00.0
version: 11
width: 32 bits
clock: 33MHz
*-generic:0
description: Generic system peripheral
product: Atom Processor C3000 Series Root Complex Event Collector
vendor: Intel Corporation
physical id: 5
bus info: pci@0000:00:05.0
version: 11
width: 32 bits
clock: 33MHz
capabilities: pciexpress pm msi bus_master cap_list
configuration: driver=pcieport latency=0
resources: irq:25
*-pci:0
description: PCI bridge
product: Atom Processor C3000 Series Integrated QAT Root Port
vendor: Intel Corporation
physical id: 6
bus info: pci@0000:00:06.0
version: 11
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:26 memory:dd200000-dd2fffff
*-processor
description: Co-processor
product: Atom Processor C3000 Series QuickAssist Technology
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:01:00.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: msi msix pm pciexpress bus_master cap_list
configuration: driver=c3xxx latency=0
resources: irq:16 memory:dd240000-dd27ffff memory:dd200000-dd23ffff memory:dd290000-dd29ffff memory:dd280000-dd28ffff
*-pci:1
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #0
vendor: Intel Corporation
physical id: 9
bus info: pci@0000:00:09.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:27 memory:dd3e0000-dd3fffff ioport:d000(size=4096) memory:dd100000-dd1fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:02:00.0
logical name: enp2s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-2 latency=0 link=no multicast=yes port=twisted pair
resources: irq:16 memory:dd100000-dd11ffff ioport:d000(size=32) memory:dd120000-dd123fff
*-pci:2
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #1
vendor: Intel Corporation
physical id: a
bus info: pci@0000:00:0a.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:28 memory:dd3c0000-dd3dffff ioport:c000(size=4096) memory:dd000000-dd0fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:03:00.0
logical name: enp3s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-2 latency=0 link=no multicast=yes port=twisted pair
resources: irq:17 memory:dd000000-dd01ffff ioport:c000(size=32) memory:dd020000-dd023fff
*-pci:3
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #2
vendor: Intel Corporation
physical id: b
bus info: pci@0000:00:0b.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:29 memory:dd3a0000-dd3bffff ioport:b000(size=4096) memory:dcf00000-dcffffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:04:00.0
logical name: enp4s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-2 latency=0 link=no multicast=yes port=twisted pair
resources: irq:18 memory:dcf00000-dcf1ffff ioport:b000(size=32) memory:dcf20000-dcf23fff
*-pci:4
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #3
vendor: Intel Corporation
physical id: c
bus info: pci@0000:00:0c.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:30 memory:dd380000-dd39ffff ioport:a000(size=4096) memory:dce00000-dcefffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:05:00.0
logical name: enp5s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-2 latency=0 link=no multicast=yes port=twisted pair
resources: irq:19 memory:dce00000-dce1ffff ioport:a000(size=32) memory:dce20000-dce23fff
*-pci:5
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #4
vendor: Intel Corporation
physical id: e
bus info: pci@0000:00:0e.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:31 memory:dd360000-dd37ffff ioport:9000(size=4096) memory:d8000000-dc0fffff
*-pci
description: PCI bridge
product: AST1150 PCI-to-PCI Bridge
vendor: ASPEED Technology, Inc.
physical id: 0
bus info: pci@0000:06:00.0
version: 03
width: 32 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
resources: ioport:9000(size=4096) memory:d8000000-dc0fffff
*-display
description: VGA compatible controller
product: ASPEED Graphics Family
vendor: ASPEED Technology, Inc.
physical id: 0
bus info: pci@0000:07:00.0
logical name: /dev/fb0
version: 30
width: 32 bits
clock: 33MHz
capabilities: pm msi vga_controller cap_list rom fb
configuration: depth=32 driver=ast latency=0 resolution=1024,768
resources: irq:20 memory:d8000000-dbffffff memory:dc000000-dc01ffff ioport:9000(size=128) memory:c0000-dffff
*-pci:6
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #5
vendor: Intel Corporation
physical id: f
bus info: pci@0000:00:0f.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:32 memory:dd340000-dd35ffff
*-pci:7
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #6
vendor: Intel Corporation
physical id: 10
bus info: pci@0000:00:10.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:33 memory:dd320000-dd33ffff
*-pci:8
description: PCI bridge
product: Atom Processor C3000 Series PCI Express Root Port #7
vendor: Intel Corporation
physical id: 11
bus info: pci@0000:00:11.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:34 memory:dd300000-dd31ffff ioport:8000(size=4096) memory:dcb00000-dcdfffff
*-network DISABLED
description: Ethernet interface
product: I210 Gigabit Fiber Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:0a:00.0
logical name: enp10s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list rom ethernet physical fibre 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=3.16, 0x800004b4 latency=0 link=no multicast=yes port=fibre
resources: irq:23 memory:dcc00000-dccfffff ioport:8000(size=32) memory:dcd00000-dcd03fff memory:dcb00000-dcbfffff
*-generic:1
description: System peripheral
product: Atom Processor C3000 Series SMBus Contoller - Host
vendor: Intel Corporation
physical id: 12
bus info: pci@0000:00:12.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pciexpress pm msi bus_master cap_list
configuration: driver=ismt_smbus latency=0
resources: irq:37 memory:dd41a000-dd41a3ff
*-sata
description: SATA controller
product: Atom Processor C3000 Series SATA Controller 0
vendor: Intel Corporation
physical id: 13
bus info: pci@0000:00:13.0
logical name: scsi3
version: 11
width: 32 bits
clock: 66MHz
capabilities: sata msi pm msix ahci_1.0 bus_master cap_list emulated
configuration: driver=ahci latency=0
resources: irq:20 memory:dd414000-dd415fff memory:dd419000-dd4190ff ioport:e050(size=8) ioport:e040(size=4) ioport:e020(size=32) memory:dd418000-dd4187ff
*-disk
description: ATA Disk
product: ADATA_IM2S3134N-
physical id: 0.0.0
bus info: scsi@3:0.0.0
logical name: /dev/sda
version: 6.8E
serial: [REMOVED]
size: 59GiB (64GB)
capabilities: gpt-1.00 partitioned partitioned:gpt
configuration: ansiversion=5 guid=1275f635-1f3a-4c4f-ae09-ab529e94485c logicalsectorsize=512 sectorsize=512
*-volume:0 UNCLAIMED
description: Windows FAT volume
vendor: mkfs.fat
physical id: 1
bus info: scsi@3:0.0.0,1
version: FAT32
serial: [REMOVED]
size: 510MiB
capacity: 511MiB
capabilities: boot fat initialized
configuration: FATs=2 filesystem=fat
*-volume:1
description: EXT4 volume
vendor: Linux
physical id: 2
bus info: scsi@3:0.0.0,2
logical name: /dev/sda2
logical name: /
version: 1.0
serial: [REMOVED]
size: 58GiB
capabilities: journaled extended_attributes large_files huge_files dir_nlink recover 64bit extents ext4 ext2 initialized
configuration: created=2023-08-10 22:37:58 filesystem=ext4 lastmountpoint=/ mount.fstype=ext4 mount.options=rw,relatime,errors=remount-ro state=mounted
*-volume:2
description: Linux swap volume
vendor: Linux
physical id: 3
bus info: scsi@3:0.0.0,3
logical name: /dev/sda3
version: 1
serial: [REMOVED]
size: 976MiB
capacity: 976MiB
capabilities: nofs swap initialized
configuration: filesystem=swap pagesize=4095
*-usb
description: USB controller
product: Atom Processor C3000 Series USB 3.0 xHCI Controller
vendor: Intel Corporation
physical id: 15
bus info: pci@0000:00:15.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pm msi xhci bus_master cap_list
configuration: driver=xhci_hcd latency=0
resources: irq:43 memory:dd400000-dd40ffff
*-usbhost:0
product: xHCI Host Controller
vendor: Linux 6.1.0-10-amd64 xhci-hcd
physical id: 0
bus info: usb@1
logical name: usb1
version: 6.01
capabilities: usb-2.00
configuration: driver=hub slots=4 speed=480Mbit/s
*-usb
description: Keyboard
product: USB Receiver
vendor: Logitech
physical id: 1
bus info: usb@1:1
version: 29.00
capabilities: usb-2.00
configuration: driver=usbhid maxpower=98mA speed=12Mbit/s
*-input:0
product: Logitech Wireless Keyboard PID:4023
physical id: 0
logical name: input15
logical name: /dev/input/event0
logical name: input15::capslock
logical name: input15::compose
logical name: input15::kana
logical name: input15::numlock
logical name: input15::scrolllock
capabilities: usb
*-input:1
product: Logitech Wireless Mouse PID:4022
physical id: 1
logical name: input16
logical name: /dev/input/event1
logical name: /dev/input/mouse0
capabilities: usb
*-usbhost:1
product: xHCI Host Controller
vendor: Linux 6.1.0-10-amd64 xhci-hcd
physical id: 1
bus info: usb@2
logical name: usb2
version: 6.01
capabilities: usb-3.00
configuration: driver=hub slots=4 speed=5000Mbit/s
*-pci:9
description: PCI bridge
product: Atom Processor C3000 Series Integrated LAN Root Port #0
vendor: Intel Corporation
physical id: 16
bus info: pci@0000:00:16.0
version: 11
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:35 memory:dc600000-dcafffff ioport:dfa00000(size=5242880)
*-network:0
description: Ethernet interface
product: Ethernet Connection X553 1GbE
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:0b:00.0
logical name: enp11s0f0
version: 11
serial: [REMOVED]
size: 1Gbit/s
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list rom ethernet physical tp 10bt-fd 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=ixgbe driverversion=6.1.0-10-amd64 duplex=full firmware=0x80000878 ip=[REMOVED] latency=0 link=yes multicast=yes port=twisted pair speed=1Gbit/s
resources: irq:16 memory:dfc00000-dfdfffff memory:dfe04000-dfe07fff memory:dc680000-dc6fffff memory:dca00000-dcafffff memory:dc900000-dc9fffff
*-network:1 DISABLED
description: Ethernet interface
product: Ethernet Connection X553 1GbE
vendor: Intel Corporation
physical id: 0.1
bus info: pci@0000:0b:00.1
logical name: enp11s0f1
version: 11
serial: [REMOVED]
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list rom ethernet physical tp 10bt-fd 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=ixgbe driverversion=6.1.0-10-amd64 firmware=0x80000878 latency=0 link=no multicast=yes port=twisted pair
resources: irq:17 memory:dfa00000-dfbfffff memory:dfe00000-dfe03fff memory:dc600000-dc67ffff memory:dc800000-dc8fffff memory:dc700000-dc7fffff
*-pci:10
description: PCI bridge
product: Atom Processor C3000 Series Integrated LAN Root Port #1
vendor: Intel Corporation
physical id: 17
bus info: pci@0000:00:17.0
version: 11
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress pm msi normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:36 memory:dc100000-dc5fffff ioport:df400000(size=5242880)
*-network:0 DISABLED
description: Ethernet interface
product: Ethernet Connection X553 1GbE
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:0d:00.0
logical name: enp13s0f0
version: 11
serial: [REMOVED]
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list rom ethernet physical tp 10bt-fd 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=ixgbe driverversion=6.1.0-10-amd64 firmware=0x8000087c latency=0 link=no multicast=yes port=twisted pair
resources: irq:16 memory:df600000-df7fffff memory:df804000-df807fff memory:dc180000-dc1fffff memory:dc500000-dc5fffff memory:dc400000-dc4fffff
*-network:1 DISABLED
description: Ethernet interface
product: Ethernet Connection X553 1GbE
vendor: Intel Corporation
physical id: 0.1
bus info: pci@0000:0d:00.1
logical name: enp13s0f1
version: 11
serial: [REMOVED]
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list rom ethernet physical tp 10bt-fd 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=ixgbe driverversion=6.1.0-10-amd64 firmware=0x8000087c latency=0 link=no multicast=yes port=twisted pair
resources: irq:17 memory:df400000-df5fffff memory:df800000-df803fff memory:dc100000-dc17ffff memory:dc300000-dc3fffff memory:dc200000-dc2fffff
*-communication UNCLAIMED
description: Communication controller
product: Atom Processor C3000 Series ME HECI 1
vendor: Intel Corporation
physical id: 18
bus info: pci@0000:00:18.0
version: 11
width: 64 bits
clock: 33MHz
capabilities: pm msi bus_master cap_list
configuration: latency=0
resources: memory:dd417000-dd417fff
*-isa
description: ISA bridge
product: Atom Processor C3000 Series LPC or eSPI
vendor: Intel Corporation
physical id: 1f
bus info: pci@0000:00:1f.0
version: 11
width: 32 bits
clock: 33MHz
capabilities: isa bus_master
configuration: latency=0
*-pnp00:00
product: PnP device PNP0c01
physical id: 0
capabilities: pnp
configuration: driver=system
*-pnp00:01
product: PnP device PNP0c02
physical id: 1
capabilities: pnp
configuration: driver=system
*-pnp00:02
product: PnP device PNP0b00
physical id: 2
capabilities: pnp
configuration: driver=rtc_cmos
*-pnp00:03
product: PnP device PNP0c02
physical id: 3
capabilities: pnp
configuration: driver=system
*-pnp00:04
product: PnP device PNP0501
physical id: 4
capabilities: pnp
configuration: driver=serial
*-pnp00:05
product: PnP device PNP0c02
physical id: 5
capabilities: pnp
configuration: driver=system
*-memory UNCLAIMED
description: Memory controller
product: Atom Processor C3000 Series Power Management Controller
vendor: Intel Corporation
physical id: 1f.2
bus info: pci@0000:00:1f.2
version: 11
width: 32 bits
clock: 33MHz (30.3ns)
configuration: latency=0
resources: memory:dd410000-dd413fff
*-serial:0
description: SMBus
product: Atom Processor C3000 Series SMBus controller
vendor: Intel Corporation
physical id: 1f.4
bus info: pci@0000:00:1f.4
version: 11
width: 64 bits
clock: 33MHz
configuration: driver=i801_smbus latency=0
resources: irq:23 memory:dd416000-dd4160ff ioport:e000(size=32)
*-serial:1 UNCLAIMED
description: Serial bus controller
product: Atom Processor C3000 Series SPI Controller
vendor: Intel Corporation
physical id: 1f.5
bus info: pci@0000:00:1f.5
version: 11
width: 32 bits
clock: 33MHz
configuration: latency=0
resources: memory:fe010000-fe010fff
*-pci:1
description: Host bridge
product: Atom Processor C3000 Series Error Registers
vendor: Intel Corporation
physical id: 101
bus info: pci@0000:00:04.0
version: 11
width: 32 bits
clock: 33MHz
*-input:0
product: Power Button
physical id: 1
logical name: input17
logical name: /dev/input/event2
capabilities: platform
*-input:1
product: PC Speaker
physical id: 2
logical name: input18
logical name: /dev/input/event3
capabilities: isa
消費電力
家庭用のワットメーターが出てきたので試してみた
- アイドル時: 21W、52℃
- フルロード時: 26W、65℃
stress-ng --cpu 4 --vm 3 --vm-bytes 30% --mmap 3 --mmap-bytes 30% --page-in --matrix 0
CPU温度は htop が lm-sensors 経由で表示したもの
BIOS で EIST の有無を切り替え可能で、周波数が上下するのも確認出来たがワットメーターの数字は変わらなかった
メーター側の精度の問題なのか、CPU自体の消費電力は誤差レベルなのかは不明
メモリ
- VLP メモリじゃないと蓋が閉まらない
- 閉まらないだけで利用は可能
- CPU 的には DDR4-2133 までだが、BIOS 上は DDR4-2666 まで使えるような表記がある
- ECC メモリはクロックが高いと認識しないかも？
xg135物理的に引っかかるだけで普通のメモリでもいけるしECC Registered不可って見たけど実際は1枚だとpostするけど2枚にするとダメだな
— アイマスP (@wataharukasan) April 24, 2023
おかしいのはメモリスロットな気がしたからエアダスターで吹っ飛ばしたら2枚でもpostした（手持ちでやってみたら多分DDR4-2400以上だとダメそう）
— アイマスP (@wataharukasan) April 24, 2023
XG135にRegisteredメモリはだめっぽいな
— Gurees (@ele_sys) April 20, 2023
SATA
- BIOS 上では M.2 スロット分の1ポートしか認識されていない
- コネクタ・電源の空きパターンはあるが、コネクタや周辺の部品が未実装
- 電源にテスタを当ててみたところ、5V/12V ともに来てはいた
- ただしパスコンがついてません
拡張スロット
mini PCIe
一部のデバイスは挿しただけでは認識せず、特定のピンをショートさせる必要がある
今回使用しているカードの仕様で
— TakaSO@SegmentationFault (@Takas_SO) November 14, 2023
CLKREQ#
ピンがオープンになっていた
mini-PCIe Gen2
↓
ASM1182e
↓
RTL8125B *2
のデバイス側ASM1182eにはCLKREQ#を制御する機能がなかったのでピンはオープンだった
XG135は省電力制御機能をオフにできないようでソフトウェア的に無効にすることはできなかった
具体的には 7番と9番ピンをショートさせればよい
本体を改造したく無かったので Aliexpress で見つけた下駄経由でやってみたが無事認識した https://www.aliexpress.com/item/1005006162504608.html
PCIe x4
解析した人によると、独自ピンアサインの mini PCIe スロットらしい
XG135のWifi / LTE拡張用スロットの解析をだいぶ進めた
— TakaSO@SegmentationFault (@Takas_SO) October 9, 2023
BIOS / UEFI での拡張スロットPCIE x4形状コネクタの扱いはmini PCIEみたいで、確かに3.3Vと1.5Vがふられている
扱い不明pin
mPCIE
1, 20, 36, 38
PCIEx4 スロット
A 1, 5, 19, 21, 22
B 19, 20
後は電源投入での解析になる
純正の 3G/4G モジュールもebayなどで写真を見ると mini PCIe のカードを変換する形になっている
ダメ元で通常の PCIe を引き出すライザーや変換アダプタを試したが当然認識せず
Venusense UTM-70E
ACアダプタ付きで2000円くらいならまぁ
所詮は Celeron J1900 だし N100 mini PC を買おう
ハードウェア
交換可能なパーツは最初から刺さっていたパーツの情報
- CPU: Celeron J1900 4C/4T TB 有効
- メモリ: DDR3L 1600 SO-DIMM 4GB x1(空きスロット無し)
- Intel Ark によると DDR3L 1333 で Max 8GB
- CF: 4GB
- Apacer Industrial CF III(AP-CF004GE3NR-NRQ)
- データシートから適当に拾い上げると、 SLC, 51.9 TBW, Read 29MB/s, Write 15MB/s
- NIC: Intel I211 x6
- USB 2.0 x2
- シリアルコンソール RJ45 x1
- その他 MB 上にコネクタ・ピンヘッダがあるもの
- VGA ピンヘッダ
- SATA2 ポート x1 + 電源コネクタ
- USB 3.0 ピンヘッダ
- PCI Express x4
- mini PCIe
- SIM スロット
- サーマルパッド
- CPU 上に乗っているのは 1mm 厚の2枚重ね
- 交換するなら 2mm 1枚でいいと思う
- CPU クーラー(相当)とフタの間に挟まっているのは 1mm 厚
- CPU 上に乗っているのは 1mm 厚の2枚重ね
- 電源: 12V/5A
- ネジロック対応の DC ジャック
https://akon-adapter.com/?pid=142981920- 対応するコネクタは 5.5x2.5mm
- 寸法: W210 x D210 x H33
- ゴム足、突起部分含まず
- 1U の棚に2台並べて入る
- 放熱が大丈夫かは別の話
製造元
Lanner FW-7515 がベースモデル
- 製品ページ: https://www.ls-china.com.cn/products/network-appliances/fw-7515
- データシート: https://www.ls-china.com.cn/support/download-center/category/40-network-appliances?download=518:fw-7515
写真
全体図

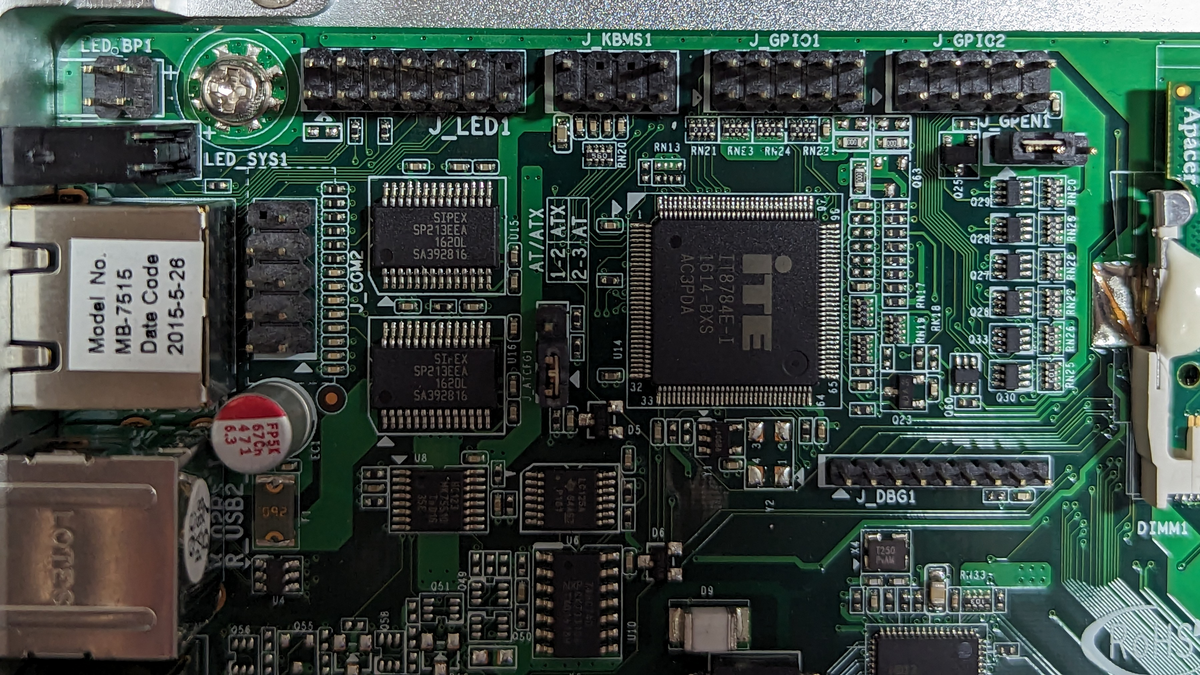

ピンヘッダ部分のズーム
VGA 出力
- 製造元が同じ Cloud Edge 70 用に作った VGA 出力コネクタがそのまま使えた
ピンアサイン
| Pin | Assing |
|---|---|
| 1 | RED |
| 2 | Ground |
| 3 | GREEN |
| 4 | GND |
| 5 | BLUE |
| 6 | GND |
| 7 | HSYNC |
| 8 | Ground |
| 9 | VSYNC |
| 10 | GND |
| 11 | DDCDATA |
| 12 | DDCCLK |

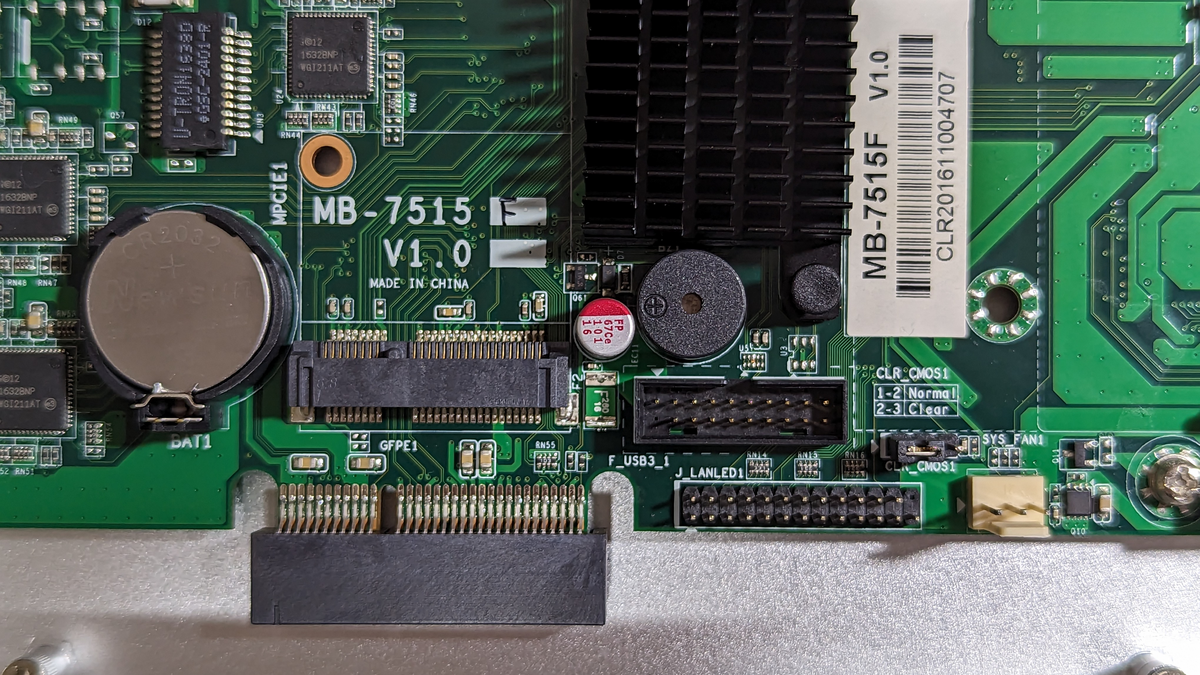

PCIe x4 スロット
- 実際に x4 でリンクするのか不明
- Intel Ark によると Celeron J1900 の PCIe は 4 レーン
- このスロットと排他になっている各種デバイスがある？
- R24SF のようなライザーカードを使えば NVMe SSD の内蔵も出来るかも
実際に x4 の NVMe SSD や x1 の NIC を挿してみた
x1 接続の NIC は認識されたが、x4の NVMe SSD や多ポートNICは BAR 14: no space for [mem size 0x00200000] のようなエラーが出て認識されなかった
ログなどから、このスロットは ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch という PCIe x1 を4分割するスイッチに接続されているのが分かった
https://www.asmedia.com.tw/product/556yQ9dSX7gP9Tuf/b7FyQBCxz2URbzg0
うち3つは GbE NIC が接続されており、空きが x4 スロットとして露出している
後述の lspci -v -t の結果のこの部分
+-1c.3-[04-09]----00.0-[05-09]--+-01.0-[06]----00.0 Intel Corporation I211 Gigabit Network Connection | +-03.0-[07]----00.0 Intel Corporation I211 Gigabit Network Connection | +-05.0-[08]----00.0 Intel Corporation I211 Gigabit Network Connection | \-07.0-[09]-- ここが x4 スロット
x1 で認識するように繋いで動くデバイスなら使えるのかも？
Linux(Debian12) での認識
Linux からどう見えるか
NIC
6ポート独立して認識
root@debian12:~# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp1s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
3: enp2s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
4: enp3s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
5: enp6s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
6: enp7s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
7: enp8s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether [REMOVED] brd ff:ff:ff:ff:ff:ff
メモリ
Intel Ark の通り DDR3 1333 が上限のようで DDR3 1600 のメモリを挿しても 1333 で動いている
root@debian12:~# dmidecode --type 17 | grep Speed
Speed: 1600 MT/s
Configured Memory Speed: 1333 MT/s
温度センサー
最小限のセンサーしか無さそう
sensors-detect
root@debian12:~# sensors-detect --auto
# sensors-detect version 3.6.0
# Board: AMI Corporation Aptio CRB
# Kernel: 6.1.0-10-amd64 x86_64
# Processor: Intel(R) Celeron(R) CPU J1900 @ 1.99GHz (6/55/8)
Running in automatic mode, default answers to all questions
are assumed.
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
Intel digital thermal sensor... Success!
(driver `coretemp')
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... Yes
Found unknown chip with ID 0x8785
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Probing for `IPMI BMC KCS' at 0xca0... No
Probing for `IPMI BMC SMIC' at 0xca8... No
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no):
Probing for `National Semiconductor LM78' at 0x290... No
Probing for `National Semiconductor LM79' at 0x290... No
Probing for `Winbond W83781D' at 0x290... No
Probing for `Winbond W83782D' at 0x290... No
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-i801' for device 0000:00:1f.3: BayTrail (SOC)
Module i2c-dev loaded successfully.
Next adapter: SMBus I801 adapter at f000 (i2c-0)
Do you want to scan it? (YES/no/selectively):
Client found at address 0x50
Handled by driver `at24' (already loaded), chip type `spd'
(note: this is probably NOT a sensor chip!)
Next adapter: i915 gmbus ssc (i2c-1)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus vga (i2c-2)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus panel (i2c-3)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpc (i2c-4)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpb (i2c-5)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpd (i2c-6)
Do you want to scan it? (yes/NO/selectively):
Now follows a summary of the probes I have just done.
Driver `coretemp':
* Chip `Intel digital thermal sensor' (confidence: 9)
To load everything that is needed, add this to /etc/modules:
#----cut here----
# Chip drivers
coretemp
#----cut here----
If you have some drivers built into your kernel, the list above will
contain too many modules. Skip the appropriate ones!
Do you want to add these lines automatically to /etc/modules? (yes/NO)
Unloading i2c-dev... OK
Unloading cpuid... OK
root@debian12:~# sensors soc_dts0-virtual-0 Adapter: Virtual device temp1: +44.0°C acpitz-acpi-0 Adapter: ACPI interface temp1: +26.8°C (crit = +90.0°C) soc_dts1-virtual-0 Adapter: Virtual device temp1: +43.0°C coretemp-isa-0000 Adapter: ISA adapter Core 0: +41.0°C (high = +105.0°C, crit = +105.0°C) Core 1: +41.0°C (high = +105.0°C, crit = +105.0°C) Core 2: +43.0°C (high = +105.0°C, crit = +105.0°C) Core 3: +43.0°C (high = +105.0°C, crit = +105.0°C)
各種デバイス情報表示コマンドの実行結果
長いです
lspci
root@debian12:~# lspci -t -vvv
-[0000:00]-+-00.0 Intel Corporation Atom Processor Z36xxx/Z37xxx Series SoC Transaction Register
+-02.0 Intel Corporation Atom Processor Z36xxx/Z37xxx Series Graphics & Display
+-13.0 Intel Corporation Atom Processor E3800 Series SATA AHCI Controller
+-14.0 Intel Corporation Atom Processor Z36xxx/Z37xxx, Celeron N2000 Series USB xHCI
+-1a.0 Intel Corporation Atom Processor Z36xxx/Z37xxx Series Trusted Execution Engine
+-1c.0-[01]----00.0 Intel Corporation I211 Gigabit Network Connection
+-1c.1-[02]----00.0 Intel Corporation I211 Gigabit Network Connection
+-1c.2-[03]----00.0 Intel Corporation I211 Gigabit Network Connection
+-1c.3-[04-09]----00.0-[05-09]--+-01.0-[06]----00.0 Intel Corporation I211 Gigabit Network Connection
| +-03.0-[07]----00.0 Intel Corporation I211 Gigabit Network Connection
| +-05.0-[08]----00.0 Intel Corporation I211 Gigabit Network Connection
| \-07.0-[09]--
+-1f.0 Intel Corporation Atom Processor Z36xxx/Z37xxx Series Power Control Unit
\-1f.3 Intel Corporation Atom Processor E3800/CE2700 Series SMBus Controller
root@debian12:~# lspci -vv
00:00.0 Host bridge: Intel Corporation Atom Processor Z36xxx/Z37xxx Series SoC Transaction Register (rev 0e)
Subsystem: Intel Corporation Atom Processor Z36xxx/Z37xxx Series SoC Transaction Register
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Kernel driver in use: iosf_mbi_pci
00:02.0 VGA compatible controller: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Graphics & Display (rev 0e) (prog-if 00 [VGA controller])
DeviceName: Onboard IGD
Subsystem: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Graphics & Display
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 129
Region 0: Memory at 90000000 (32-bit, non-prefetchable) [size=4M]
Region 2: Memory at 80000000 (32-bit, prefetchable) [size=256M]
Region 4: I/O ports at f080 [size=8]
Expansion ROM at 000c0000 [virtual] [disabled] [size=128K]
Capabilities: [d0] Power Management version 2
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [90] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee01004 Data: 0027
Capabilities: [b0] Vendor Specific Information: Len=07 <?>
Kernel driver in use: i915
Kernel modules: i915
00:13.0 SATA controller: Intel Corporation Atom Processor E3800 Series SATA AHCI Controller (rev 0e) (prog-if 01 [AHCI 1.0])
Subsystem: Intel Corporation Atom Processor E3800 Series SATA AHCI Controller
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 101
Region 0: I/O ports at f070 [size=8]
Region 1: I/O ports at f060 [size=4]
Region 2: I/O ports at f050 [size=8]
Region 3: I/O ports at f040 [size=4]
Region 4: I/O ports at f020 [size=32]
Region 5: Memory at 90c12000 (32-bit, non-prefetchable) [size=2K]
Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee08004 Data: 0024
Capabilities: [70] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [a8] SATA HBA v1.0 BAR4 Offset=00000004
Kernel driver in use: ahci
Kernel modules: ahci
00:14.0 USB controller: Intel Corporation Atom Processor Z36xxx/Z37xxx, Celeron N2000 Series USB xHCI (rev 0e) (prog-if 30 [XHCI])
Subsystem: Intel Corporation Atom Processor Z36xxx/Z37xxx, Celeron N2000 Series USB xHCI
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 107
Region 0: Memory at 90c00000 (64-bit, non-prefetchable) [size=64K]
Capabilities: [70] Power Management version 2
Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0-,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] MSI: Enable+ Count=1/8 Maskable- 64bit+
Address: 00000000fee01004 Data: 0025
Kernel driver in use: xhci_hcd
Kernel modules: xhci_pci
00:1a.0 Encryption controller: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Trusted Execution Engine (rev 0e)
Subsystem: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Trusted Execution Engine
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ -2147483648
Region 0: Memory at 90500000 (32-bit, non-prefetchable) [size=1M]
Region 1: Memory at 90400000 (32-bit, non-prefetchable) [size=1M]
Capabilities: [80] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit-
Address: 00000000 Data: 0000
Kernel modules: mei_txe
00:1c.0 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 1 (rev 0e) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 1
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 87
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: e000-efff [size=4K] [16-bit]
Memory behind bridge: 90b00000-90bfffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <512ns, L1 <4us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp-
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #0, PowerLimit 10W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCap: CRSVisible-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd-
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee02004 Data: 0021
Capabilities: [90] Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 1
Capabilities: [a0] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel driver in use: pcieport
00:1c.1 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 2 (rev 0e) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 2
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 88
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
I/O behind bridge: d000-dfff [size=4K] [16-bit]
Memory behind bridge: 90a00000-90afffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #2, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <512ns, L1 <4us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp-
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #1, PowerLimit 10W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCap: CRSVisible-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd-
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee04004 Data: 0021
Capabilities: [90] Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 2
Capabilities: [a0] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel driver in use: pcieport
00:1c.2 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 3 (rev 0e) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 3
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 89
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
I/O behind bridge: c000-cfff [size=4K] [16-bit]
Memory behind bridge: 90900000-909fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #3, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <512ns, L1 <4us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp-
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #2, PowerLimit 10W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCap: CRSVisible-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd-
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee08004 Data: 0021
Capabilities: [90] Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 3
Capabilities: [a0] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel driver in use: pcieport
00:1c.3 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 4 (rev 0e) (prog-if 00 [Normal decode])
Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 4
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 90
Bus: primary=00, secondary=04, subordinate=09, sec-latency=0
I/O behind bridge: 9000-bfff [size=12K] [16-bit]
Memory behind bridge: 90600000-908fffff [size=3M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE+
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #4, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <512ns, L1 <4us
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+
Slot #3, PowerLimit 10W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCap: CRSVisible-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Range BC, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd-
AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: ReqEn- EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit-
Address: fee01004 Data: 0022
Capabilities: [90] Subsystem: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 4
Capabilities: [a0] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel driver in use: pcieport
00:1f.0 ISA bridge: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Power Control Unit (rev 0e)
Subsystem: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Power Control Unit
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Capabilities: [e0] Vendor Specific Information: Len=0c <?>
Kernel driver in use: lpc_ich
Kernel modules: lpc_ich
00:1f.3 SMBus: Intel Corporation Atom Processor E3800/CE2700 Series SMBus Controller (rev 0e)
Subsystem: Intel Corporation Atom Processor E3800/CE2700 Series SMBus Controller
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin B routed to IRQ 18
Region 0: Memory at 90c10000 (32-bit, non-prefetchable) [size=32]
Region 4: I/O ports at f000 [size=32]
Capabilities: [50] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D3 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Kernel driver in use: i801_smbus
Kernel modules: i2c_i801
01:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at 90b00000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at e000 [size=32]
Region 3: Memory at 90b20000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
02:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 17
Region 0: Memory at 90a00000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at d000 [size=32]
Region 3: Memory at 90a20000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at 90900000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at c000 [size=32]
Region 3: Memory at 90920000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
04:00.0 PCI bridge: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch (prog-if 00 [Normal decode])
Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 91
Bus: primary=04, secondary=05, subordinate=09, sec-latency=0
I/O behind bridge: 9000-bfff [size=12K] [16-bit]
Memory behind bridge: 90600000-908fffff [size=3M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee02004 Data: 0022
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] Express (v2) Upstream Port, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ SlotPowerLimit 10W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 unlimited
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01
Status: NegoPending- InProgress-
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 1f, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [300 v1] Vendor Specific Information: ID=0000 Rev=0 Len=c00 <?>
Kernel driver in use: pcieport
05:01.0 PCI bridge: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch (prog-if 00 [Normal decode])
Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 92
Bus: primary=05, secondary=06, subordinate=06, sec-latency=0
I/O behind bridge: b000-bfff [size=4K] [16-bit]
Memory behind bridge: 90800000-908fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee04004 Data: 0022
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 unlimited
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #1, PowerLimit 26W; Interlock- NoCompl-
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01
Status: NegoPending- InProgress-
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 1f, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Kernel driver in use: pcieport
05:03.0 PCI bridge: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch (prog-if 00 [Normal decode])
Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 93
Bus: primary=05, secondary=07, subordinate=07, sec-latency=0
I/O behind bridge: a000-afff [size=4K] [16-bit]
Memory behind bridge: 90700000-907fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee08004 Data: 0022
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #3, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 unlimited
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #3, PowerLimit 26W; Interlock- NoCompl-
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01
Status: NegoPending- InProgress-
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 1f, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Kernel driver in use: pcieport
05:05.0 PCI bridge: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch (prog-if 00 [Normal decode])
Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 94
Bus: primary=05, secondary=08, subordinate=08, sec-latency=0
I/O behind bridge: 9000-9fff [size=4K] [16-bit]
Memory behind bridge: 90600000-906fffff [size=1M] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee01004 Data: 0023
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [80] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #5, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 unlimited
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #5, PowerLimit 26W; Interlock- NoCompl-
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=01
Status: NegoPending- InProgress-
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 1f, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Kernel driver in use: pcieport
05:07.0 PCI bridge: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch (prog-if 00 [Normal decode])
Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 95
Bus: primary=05, secondary=09, subordinate=09, sec-latency=0
I/O behind bridge: [disabled] [32-bit]
Memory behind bridge: [disabled] [32-bit]
Prefetchable memory behind bridge: [disabled] [64-bit]
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee02004 Data: 0023
Capabilities: [78] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D3 NoSoftRst+ PME-Enable+ DSel=0 DScale=0 PME-
Capabilities: [80] Express (v2) Downstream Port (Slot+), MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0
ExtTag+ RBE+
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #7, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s unlimited, L1 unlimited
ClockPM- Surprise- LLActRep+ BwNot+ ASPMOptComp+
LnkCtl: ASPM Disabled; Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
Slot #7, PowerLimit 26W; Interlock- NoCompl-
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- ARIFwd-
AtomicOpsCap: Routing-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled, ARIFwd-
AtomicOpsCtl: EgressBlck-
LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Subsystem: ASMedia Technology Inc. ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
Capabilities: [100 v1] Virtual Channel
Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
Arb: Fixed- WRR32- WRR64- WRR128-
Ctrl: ArbSelect=Fixed
Status: InProgress-
VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
Status: NegoPending+ InProgress-
Capabilities: [200 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 1f, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Kernel driver in use: pcieport
06:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at 90800000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at b000 [size=32]
Region 3: Memory at 90820000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #1, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
07:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at 90700000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at a000 [size=32]
Region 3: Memory at 90720000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #3, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
08:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
Subsystem: Intel Corporation I211 Gigabit Network Connection
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at 90600000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at 9000 [size=32]
Region 3: Memory at 90620000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=1 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Address: 0000000000000000 Data: 0000
Masking: 00000000 Pending: 00000000
Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
Vector table: BAR=3 offset=00000000
PBA: BAR=3 offset=00002000
Capabilities: [a0] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 128 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
LnkCap: Port #5, Speed 2.5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <2us, L1 <16us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis+ LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [140 v1] Device Serial Number [REMOVED]
Capabilities: [1a0 v1] Transaction Processing Hints
Device specific mode supported
Steering table in TPH capability structure
Kernel driver in use: igb
Kernel modules: igb
lstopo
root@debian12:~# lstopo -v --of png > topo.png
lshw
root@debian12:~# lshw -sanitize -notime
computer
description: Desktop Computer
product: To be filled by O.E.M. (To be filled by O.E.M.)
vendor: To be filled by O.E.M.
version: To be filled by O.E.M.
serial: [REMOVED]
width: 64 bits
capabilities: smbios-2.8 dmi-2.8 smp vsyscall32
configuration: boot=normal chassis=desktop family=To be filled by O.E.M. sku=To be filled by O.E.M. uuid=[REMOVED]
*-core
description: Motherboard
product: Aptio CRB
vendor: AMI Corporation
physical id: 0
version: To be filled by O.E.M.
serial: [REMOVED]
slot: To be filled by O.E.M.
*-firmware
description: BIOS
vendor: American Megatrends Inc.
physical id: 0
version: 5.6.5
date: 05/26/2015
size: 64KiB
capacity: 1MiB
capabilities: pci upgrade shadowing cdboot bootselect socketedrom edd int13floppy1200 int13floppy720 int13floppy2880 int5printscreen int9keyboard int14serial int17printer acpi usb biosbootspecification uefi
*-memory
description: System Memory
physical id: 28
slot: System board or motherboard
size: 8GiB
*-bank:0
description: DIMM DDR3 1600 MHz (0.6 ns)
product: TEAMGROUP-SD3-1600
vendor: Undefined
physical id: 0
serial: [REMOVED]
slot: A1_DIMM0
size: 8GiB
width: 64 bits
clock: 1600MHz (0.6ns)
*-bank:1
description: DIMM [empty]
product: Array1_PartNumber1
vendor: A1_Manufacturer1
physical id: 1
serial: [REMOVED]
slot: A1_DIMM1
*-cache:0
description: L1 cache
physical id: 32
slot: CPU Internal L1
size: 224KiB
capacity: 224KiB
capabilities: internal write-back
configuration: level=1
*-cache:1
description: L2 cache
physical id: 33
slot: CPU Internal L2
size: 2MiB
capacity: 2MiB
capabilities: internal write-back unified
configuration: level=2
*-cpu
description: CPU
product: Intel(R) Celeron(R) CPU J1900 @ 1.99GHz
vendor: Intel Corp.
physical id: 34
bus info: cpu@0
version: 6.55.8
slot: SOCKET 0
size: 2331MHz
capacity: 2415MHz
width: 64 bits
clock: 83MHz
capabilities: lm fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp x86-64 constant_tsc arch_perfmon pebs bts rep_good nopl xtopology tsc_reliable nonstop_tsc cpuid aperfmperf tsc_known_freq pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 movbe popcnt tsc_deadline_timer rdrand lahf_lm 3dnowprefetch epb pti ibrs ibpb stibp tpr_shadow vnmi flexpriority ept vpid tsc_adjust smep erms dtherm ida arat md_clear cpufreq
configuration: cores=4 enabledcores=4 microcode=2104 threads=4
*-pci
description: Host bridge
product: Atom Processor Z36xxx/Z37xxx Series SoC Transaction Register
vendor: Intel Corporation
physical id: 100
bus info: pci@0000:00:00.0
version: 0e
width: 32 bits
clock: 33MHz
configuration: driver=iosf_mbi_pci
resources: irq:0
*-display
description: VGA compatible controller
product: Atom Processor Z36xxx/Z37xxx Series Graphics & Display
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:00:02.0
logical name: card0
logical name: /dev/snd/controlC0
logical name: /dev/snd/pcmC0D0p
logical name: /dev/snd/pcmC0D1p
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pm msi vga_controller bus_master cap_list rom
configuration: driver=i915 latency=0
resources: irq:129 memory:90000000-903fffff memory:80000000-8fffffff ioport:f080(size=8) memory:c0000-dffff
*-sata
description: SATA controller
product: Atom Processor E3800 Series SATA AHCI Controller
vendor: Intel Corporation
physical id: 13
bus info: pci@0000:00:13.0
logical name: scsi1
version: 0e
width: 32 bits
clock: 66MHz
capabilities: sata msi pm ahci_1.0 bus_master cap_list emulated
configuration: driver=ahci latency=0
resources: irq:112 ioport:f070(size=8) ioport:f060(size=4) ioport:f050(size=8) ioport:f040(size=4) ioport:f020(size=32) memory:90c12000-90c127ff
*-disk
description: ATA Disk
product: TOSHIBA THNSNJ06
vendor: Toshiba
physical id: 0.0.0
bus info: scsi@1:0.0.0
logical name: /dev/sda
version: 0101
serial: [REMOVED]
size: 55GiB (60GB)
capabilities: gpt-1.00 partitioned partitioned:gpt
configuration: ansiversion=5 guid=b270e3a4-45a6-4e1e-afb3-4963729e4951 logicalsectorsize=512 sectorsize=512
*-volume:0
description: Windows FAT volume
vendor: mkfs.fat
physical id: 1
bus info: scsi@1:0.0.0,1
logical name: /dev/sda1
logical name: /boot/efi
version: FAT32
serial: [REMOVED]
size: 510MiB
capacity: 511MiB
capabilities: boot fat initialized
configuration: FATs=2 filesystem=fat mount.fstype=vfat mount.options=rw,relatime,fmask=0077,dmask=0077,codepage=437,iocharset=ascii,shortname=mixed,utf8,errors=remount-ro state=mounted
*-volume:1 UNCLAIMED
description: EFI partition
physical id: 2
bus info: scsi@1:0.0.0,2
serial: [REMOVED]
capacity: 54GiB
*-volume:2
description: Linux swap volume
vendor: Linux
physical id: 3
bus info: scsi@1:0.0.0,3
logical name: /dev/sda3
version: 1
serial: [REMOVED]
size: 975MiB
capacity: 975MiB
capabilities: nofs swap initialized
configuration: filesystem=swap pagesize=4095
*-usb
description: USB controller
product: Atom Processor Z36xxx/Z37xxx, Celeron N2000 Series USB xHCI
vendor: Intel Corporation
physical id: 14
bus info: pci@0000:00:14.0
version: 0e
width: 64 bits
clock: 33MHz
capabilities: pm msi xhci bus_master cap_list
configuration: driver=xhci_hcd latency=0
resources: irq:101 memory:90c00000-90c0ffff
*-usbhost:0
product: xHCI Host Controller
vendor: Linux 6.1.0-10-amd64 xhci-hcd
physical id: 0
bus info: usb@1
logical name: usb1
version: 6.01
capabilities: usb-2.00
configuration: driver=hub slots=6 speed=480Mbit/s
*-usb:0
description: Mass storage device
product: silicon-power
physical id: 2
bus info: usb@1:2
logical name: scsi2
version: 1.10
serial: [REMOVED]
capabilities: usb-2.00 scsi emulated
configuration: driver=usb-storage maxpower=300mA speed=480Mbit/s
*-disk
description: SCSI Disk
product: silicon-power
physical id: 0.0.0
bus info: scsi@2:0.0.0
logical name: /dev/sdb
version: PMAP
capabilities: removable
configuration: logicalsectorsize=512 sectorsize=512
*-medium
physical id: 0
logical name: /dev/sdb
*-usb:1
description: Keyboard
product: USB Receiver
vendor: Logitech
physical id: 3
bus info: usb@1:3
version: 29.00
capabilities: usb-2.00
configuration: driver=usbhid maxpower=98mA speed=12Mbit/s
*-input:0
product: Logitech Wireless Keyboard PID:4023
physical id: 0
logical name: input21
logical name: /dev/input/event4
logical name: input21::capslock
logical name: input21::compose
logical name: input21::kana
logical name: input21::numlock
logical name: input21::scrolllock
capabilities: usb
*-input:1
product: Logitech Wireless Mouse PID:4022
physical id: 1
logical name: input23
logical name: /dev/input/event5
logical name: /dev/input/mouse0
capabilities: usb
*-usbhost:1
product: xHCI Host Controller
vendor: Linux 6.1.0-10-amd64 xhci-hcd
physical id: 1
bus info: usb@2
logical name: usb2
version: 6.01
capabilities: usb-3.00
configuration: driver=hub slots=1 speed=5000Mbit/s
*-generic UNCLAIMED
description: Encryption controller
product: Atom Processor Z36xxx/Z37xxx Series Trusted Execution Engine
vendor: Intel Corporation
physical id: 1a
bus info: pci@0000:00:1a.0
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pm msi cap_list
configuration: latency=0
resources: memory:90500000-905fffff memory:90400000-904fffff
*-pci:0
description: PCI bridge
product: Atom Processor E3800 Series PCI Express Root Port 1
vendor: Intel Corporation
physical id: 1c
bus info: pci@0000:00:1c.0
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:87 ioport:e000(size=4096) memory:90b00000-90bfffff
*-network
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:01:00.0
logical name: enp1s0
version: 03
serial: [REMOVED]
size: 1Gbit/s
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 duplex=full firmware=0. 6-1 ip=[REMOVED] latency=0 link=yes multicast=yes port=twisted pair speed=1Gbit/s
resources: irq:16 memory:90b00000-90b1ffff ioport:e000(size=32) memory:90b20000-90b23fff
*-pci:1
description: PCI bridge
product: Atom Processor E3800 Series PCI Express Root Port 2
vendor: Intel Corporation
physical id: 1c.1
bus info: pci@0000:00:1c.1
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:88 ioport:d000(size=4096) memory:90a00000-90afffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:02:00.0
logical name: enp2s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-1 latency=0 link=no multicast=yes port=twisted pair
resources: irq:17 memory:90a00000-90a1ffff ioport:d000(size=32) memory:90a20000-90a23fff
*-pci:2
description: PCI bridge
product: Atom Processor E3800 Series PCI Express Root Port 3
vendor: Intel Corporation
physical id: 1c.2
bus info: pci@0000:00:1c.2
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:89 ioport:c000(size=4096) memory:90900000-909fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:03:00.0
logical name: enp3s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-1 latency=0 link=no multicast=yes port=twisted pair
resources: irq:18 memory:90900000-9091ffff ioport:c000(size=32) memory:90920000-90923fff
*-pci:3
description: PCI bridge
product: Atom Processor E3800 Series PCI Express Root Port 4
vendor: Intel Corporation
physical id: 1c.3
bus info: pci@0000:00:1c.3
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:90 ioport:9000(size=12288) memory:90600000-908fffff
*-pci
description: PCI bridge
product: ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
vendor: ASMedia Technology Inc.
physical id: 0
bus info: pci@0000:04:00.0
version: 00
width: 64 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: iomemory:b1910-b190f irq:91 ioport:9000(size=12288) memory:90600000-908fffff
*-pci:0
description: PCI bridge
product: ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
vendor: ASMedia Technology Inc.
physical id: 1
bus info: pci@0000:05:01.0
version: 00
width: 32 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:92 ioport:b000(size=4096) memory:90800000-908fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:06:00.0
logical name: enp6s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-1 latency=0 link=no multicast=yes port=twisted pair
resources: irq:16 memory:90800000-9081ffff ioport:b000(size=32) memory:90820000-90823fff
*-pci:1
description: PCI bridge
product: ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
vendor: ASMedia Technology Inc.
physical id: 3
bus info: pci@0000:05:03.0
version: 00
width: 32 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:93 ioport:a000(size=4096) memory:90700000-907fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:07:00.0
logical name: enp7s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-1 latency=0 link=no multicast=yes port=twisted pair
resources: irq:18 memory:90700000-9071ffff ioport:a000(size=32) memory:90720000-90723fff
*-pci:2
description: PCI bridge
product: ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
vendor: ASMedia Technology Inc.
physical id: 5
bus info: pci@0000:05:05.0
version: 00
width: 32 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:94 ioport:9000(size=4096) memory:90600000-906fffff
*-network DISABLED
description: Ethernet interface
product: I211 Gigabit Network Connection
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:08:00.0
logical name: enp8s0
version: 03
serial: [REMOVED]
capacity: 1Gbit/s
width: 32 bits
clock: 33MHz
capabilities: pm msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=igb driverversion=6.1.0-10-amd64 firmware=0. 6-1 latency=0 link=no multicast=yes port=twisted pair
resources: irq:16 memory:90600000-9061ffff ioport:9000(size=32) memory:90620000-90623fff
*-pci:3
description: PCI bridge
product: ASM1184e 4-Port PCIe x1 Gen2 Packet Switch
vendor: ASMedia Technology Inc.
physical id: 7
bus info: pci@0000:05:07.0
version: 00
width: 32 bits
clock: 33MHz
capabilities: pci msi pm pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:95
*-isa
description: ISA bridge
product: Atom Processor Z36xxx/Z37xxx Series Power Control Unit
vendor: Intel Corporation
physical id: 1f
bus info: pci@0000:00:1f.0
version: 0e
width: 32 bits
clock: 33MHz
capabilities: isa bus_master cap_list
configuration: driver=lpc_ich latency=0
resources: irq:0
*-pnp00:00
product: PnP device PNP0b00
physical id: 0
capabilities: pnp
configuration: driver=rtc_cmos
*-pnp00:01
product: PnP device PNP0c02
physical id: 1
capabilities: pnp
configuration: driver=system
*-pnp00:02
product: PnP device PNP0c02
physical id: 2
capabilities: pnp
configuration: driver=system
*-pnp00:03
product: PnP device PNP0303
physical id: 3
capabilities: pnp
configuration: driver=i8042 kbd
*-pnp00:04
product: PnP device PNP0f13
physical id: 4
capabilities: pnp
configuration: driver=i8042 aux
*-pnp00:05
product: PnP device PNP0501
physical id: 5
capabilities: pnp
configuration: driver=serial
*-pnp00:06
product: PnP device PNP0501
physical id: 6
capabilities: pnp
configuration: driver=serial
*-pnp00:07
product: PnP device PNP0c02
physical id: 7
capabilities: pnp
configuration: driver=system
*-serial
description: SMBus
product: Atom Processor E3800/CE2700 Series SMBus Controller
vendor: Intel Corporation
physical id: 1f.3
bus info: pci@0000:00:1f.3
version: 0e
width: 32 bits
clock: 33MHz
capabilities: pm cap_list
configuration: driver=i801_smbus latency=0
resources: irq:18 memory:90c10000-90c1001f ioport:f000(size=32)
*-input:0
product: Power Button
physical id: 1
logical name: input18
logical name: /dev/input/event0
capabilities: platform
*-input:1
product: Sleep Button
physical id: 2
logical name: input19
logical name: /dev/input/event1
capabilities: platform
*-input:2
product: Power Button
physical id: 3
logical name: input20
logical name: /dev/input/event2
capabilities: platform
*-input:3
product: PC Speaker
physical id: 4
logical name: input22
logical name: /dev/input/event3
capabilities: isa
*-input:4
product: Video Bus
physical id: 5
logical name: input24
logical name: /dev/input/event6
capabilities: platform
*-input:5
product: Intel HDMI/DP LPE Audio HDMI/DP,pcm=0
physical id: 6
logical name: input25
logical name: /dev/input/event7
*-input:6
product: Intel HDMI/DP LPE Audio HDMI/DP,pcm=1
physical id: 7
logical name: input26
logical name: /dev/input/event8
SSD を増設する
SATA2 なので注意
SATA ケーブル
- 長さ30cm、マザボ側L字、SSD側ストレート
電源
ピンアサインはマークの付いてる 1 番から
+12V/GND/GND/+5V電源のコネクタは EI コネクタ 4 ピン
- フロッピー用と同じものだが、通常のコネクタを使うと高さがあってフタが閉まらない
- http://blog.siliconhouse.jp/archives/51499596.html
- ロープロファイルコネクタを使えば収まるはず
EH コネクタに交換するという手もあるが、はんだ吸取器など相応の工具が必要
EI・EH どちらのコネクタを使うにしても圧着工具は必要
これを生け贄にしてコネクタを付けた
EH コネクタに交換してケーブルを取りつけた写真
固定方法
ホームセンターで良い感じの 10x10 アングルを見つけたのでフタに両面テープで貼り付けて固定用のブラケットにしてみた
取付位置
- ネジの位置が微妙だけど取り外しも問題無く出来た
両面テープは耐熱用の物を使う
9mm 厚の SSD も入ったけどかなり微妙
- ギリギリアウト寄り
ゴム足の交換
- 1U に収まる高さ (44mm) を維持しつつ、分解しやすいゴム足に交換する
- ゴム足: TM-K11W
- 付属のネジでは長さが足りなくなるのでネジも交換する必要がある
- ネジ: M3 33mm
先駆者の情報
シリアルコンソールの出し方についてはありがたかった
Venusense UTM-70E 午前中までの総評
— suebo@人生タイト・ロープ (@cd1086) 2020年6月7日
・CPU:Celeron J1900
・Memory:DDR3L 4GB
・記憶媒体:CF 4GB(産業向け)
・他:SIMスロット有り、mPCIE有り
ジャンクとしては結構遊べる、当たりと思っていい。
UTM-70E BIOS見れた。
— suebo@人生タイト・ロープ (@cd1086) 2020年6月21日
GeForce8600GT、君の犠牲は無駄にはしない。 pic.twitter.com/NMJReLmQU3
ROM焼きもグラボもない時
— suebo@人生タイト・ロープ (@cd1086) 2020年6月21日
UTM70Eのシリアル経由でBIOSを出す方法
シリアルコンソールに115200bps接続
USBにキーボードを接続
電源を入れたらDELキー連打
しばらくLEDが点滅しない事を確認
右１回
下４回
リターン１回
スペース１回
ESCキー１回
左２回
リターン２回
これでシリアルコンソール出た。 pic.twitter.com/Jn8gXHfFdc
Venusense UTM-70Eは二度と買わないと思うけど、備忘録として残しとく。
— suebo@人生タイト・ロープ (@cd1086) 2020年6月21日
ターミナルタイプはVT100+にしないと色で困る pic.twitter.com/JXOO8IYf1S
Venusense UTM-70E
— Yu/Ma🌥 (@lezosan) 2020年6月19日
昨晩PCI-Express経由で画面出力が確認できたのでメモ✍
設定値から分かったこと
0. UEFIであること
1. Console RedirectionをEnable可
2. CF Bootが最優先になっている。
3. PCI SpeedはGen1がデフォルト pic.twitter.com/4Hcd6y4rm4
Venusense UTM-70E
— Yu/Ma🌥 (@lezosan) 2020年6月17日
CPU：Celeron J1900 2Ghz 4Core
MEM：4GB（たぶん8GBまでいける
内蔵CF：8GB
NIC:Intel I211 6Port
etc: SATAポート有(電源っぽいコネクタ有),PCI-Express x4,USB 3.0
簡単にWindows Server入れられて個人的にはめっちゃ良い感じщ(ﾟДﾟщ)ｶﾓｰ pic.twitter.com/fbwM2VkK2q
良い感じにケースの横が開くようになっているのと、
— Yu/Ma🌥 (@lezosan) 2020年6月17日
PCI-Expressが実装されているおかげでGPUも取り付けられるはずなのでBIOSも簡単に拝めるはず（こんどやる） pic.twitter.com/Yb98UlpBH5
中古の Intel I350 NIC を買ったら SR-IOV が無効にされていたので有効化した
概要
4ポート版の I350-T4V2 を買って SR-IOV を有効化しようとしたらどうやっても有効にならなかったのが発端。
当初は偽物かと疑ったが 真贋比較写真 を見る限りは本物っぽいし不良品？と思いながらさらに調べると、一部メーカー(Dell)のサーバーに付属してたものは無効にされている事があるらしいと分かった。
えーーとなるも、詳しく読むと EEPROM を直接変更することでこれを有効化出来ると書いてあったので実際に有効化した記録。
reference
- 使えないという自分と同じ症状を訴えるスレッド
- 有効化する方法が投稿されているML
- I350 のデータシート
作業の記録
やる事はMLの投稿が全てなのだが、肝心の書き込む値が省略されている。 (おそらく)無保証の行為だし、NICが壊れるリスクもあるから自分で計算して自己責任でやれってことでしょう。
元の状態(lspci -v)
# lspci -v
04:00.0 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
Subsystem: Intel Corporation Ethernet Server Adapter I350-T4
Flags: bus master, fast devsel, latency 0, IRQ 39, IOMMU group 21
Memory at fbd00000 (32-bit, non-prefetchable) [size=1M]
Memory at fc00c000 (32-bit, non-prefetchable) [size=16K]
Expansion ROM at fbf80000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Capabilities: [70] MSI-X: Enable+ Count=10 Masked-
Capabilities: [a0] Express Endpoint, MSI 00
Capabilities: [e0] Vital Product Data
Capabilities: [100] Advanced Error Reporting
Capabilities: [140] Device Serial Number XX-XX-XX-XX-XX-XX-XX-XX
Capabilities: [150] Alternative Routing-ID Interpretation (ARI)
Capabilities: [1a0] Transaction Processing Hints
Capabilities: [1c0] Latency Tolerance Reporting
Capabilities: [1d0] Access Control Services
Kernel driver in use: igb
Kernel modules: igb
対象デバイスは enp4s0f0 ～ enp4s0f3
# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp4s0f0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:00 brd ff:ff:ff:ff:ff:ff
3: enp4s0f1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:01 brd ff:ff:ff:ff:ff:ff
4: enp4s0f2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:02 brd ff:ff:ff:ff:ff:ff
5: enp4s0f3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:03 brd ff:ff:ff:ff:ff:ff
6: enp5s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:11:22:33:44:55 brd ff:ff:ff:ff:ff:ff
inet 192.168.168.168/24 scope global enp5s0
valid_lft forever preferred_lft forever
4つ認識されているが、EEPROM は共通らしいので enp4s0f0 を対象にする。
まずは現在の EEPROM をバックアップ
# ethtool --eeprom-dump enp4s0f0 raw on > eeprom-backup.bin
EEPROM の該当の設定が入っている部分を表示する
# ethtool --eeprom-dump enp4s0f0 offset 0x4a length 1 > Offset Values > ------ ------ > 0x004a: 16
この Values は16進数なので 0x16 が現在の値。MLの人は 0xf6 だったらしい。
MLの投稿と I350 のデータシートの該当ページ 6.2.25 I/O Virtualization (IOV) Control (Word 0x25) によるとこれは設定の上位8ビットらしい。
下位8ビットも含めて設定全体を取得してみる。リトルエンディアンなので offset は前のアドレスになるのね……
# ethtool --eeprom-dump enp4s0f0 offset 0x49 length 2 > Offset Values > ------ ------ > 0x0049: 00 16
0x00 と 0x16 をビットにすると 0b00000000 0b00010110
つまり設定全体の値は 0b0000000000010110
これをIntelのドキュメントに従って割り当てるとこうなる
0000000000010110 自分のやつ
xxxxxxxx11110110 MLの人の値(下位ビットは不明)
- drop_vm_lpbk: 0b
------ Reserved: 0x0
- ARI Enabled: 1b
--- Max VFs: 0x7
-- MSI-X table: 0x2
- 64bit Advertisement: 1b
- Prefetchable: 0b
- IOV Enabled: 1b
現在の設定を見ると自分の I350 は IOV無効化だけでなく、 VFs の最大数も0、ARI Enabled のビットもデフォルトから変更されている。
ARI については後にするとして、上位8ビットのアドレス 0x4a に書き込むべき値をここから計算する。
書き込み
ethtool --change-eeprom enp4s0f0 magic 0x15218086 offset 0x4a length 1 value "${value}"
再起動して lspci -v
# lspci -v
04:00.0 Ethernet controller: Intel Corporation I350 Gigabit Network Connection (rev 01)
Subsystem: Intel Corporation Ethernet Server Adapter I350-T4
Flags: bus master, fast devsel, latency 0, IRQ 39, IOMMU group 21
Memory at fbd00000 (32-bit, non-prefetchable) [size=1M]
Memory at fc00c000 (32-bit, non-prefetchable) [size=16K]
Expansion ROM at fbf80000 [disabled] [size=512K]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
Capabilities: [70] MSI-X: Enable+ Count=10 Masked-
Capabilities: [a0] Express Endpoint, MSI 00
Capabilities: [e0] Vital Product Data
Capabilities: [100] Advanced Error Reporting
Capabilities: [140] Device Serial Number XX-XX-XX-XX-XX-XX-XX-XX
Capabilities: [150] Alternative Routing-ID Interpretation (ARI)
Capabilities: [160] Single Root I/O Virtualization (SR-IOV)
Capabilities: [1a0] Transaction Processing Hints
Capabilities: [1c0] Latency Tolerance Reporting
Capabilities: [1d0] Access Control Services
Kernel driver in use: igb
Kernel modules: igb
Capabilities: [160] Single Root I/O Virtualization (SR-IOV) の表示が追加されて SR-IOV が有効になっている！
試しに VFs を生やしてみる
# echo 7 > "/sys/bus/pci/devices/0000:04:00.0/sriov_numvfs"
# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp4s0f0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:00 brd ff:ff:ff:ff:ff:ff
3: enp4s0f1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:01 brd ff:ff:ff:ff:ff:ff
4: enp4s0f2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:02 brd ff:ff:ff:ff:ff:ff
5: enp4s0f3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
link/ether a0:36:9f:be:ef:03 brd ff:ff:ff:ff:ff:ff
6: enp5s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:11:22:33:44:55 brd ff:ff:ff:ff:ff:ff
inet 192.168.168.168/24 scope global enp5s0
valid_lft forever preferred_lft forever
7: enp4s0f0v0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f0 brd ff:ff:ff:ff:ff:ff permaddr 3e:93:d1:b4:85:81
8: enp4s0f0v1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f1 brd ff:ff:ff:ff:ff:ff permaddr 3a:75:f1:cb:2f:73
9: enp4s0f0v2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f2 brd ff:ff:ff:ff:ff:ff permaddr 9e:e7:5b:7b:f3:8b
10: enp4s0f0v3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f3 brd ff:ff:ff:ff:ff:ff permaddr 66:21:16:f8:2a:68
11: enp4s0f0v4: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f4 brd ff:ff:ff:ff:ff:ff permaddr b2:fb:03:03:6c:e5
12: enp4s0f0v5: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f5 brd ff:ff:ff:ff:ff:ff permaddr 02:53:89:6e:44:6b
13: enp4s0f0v6: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether aa:bb:cc:dd:ee:f6 brd ff:ff:ff:ff:ff:ff permaddr 52:19:44:96:0c:2e
ちゃんと VF が生えてきた！
lspci -v でも VF を確認出来る
lspci -v
05:10.0 Ethernet controller: Intel Corporation I350 Ethernet Controller Virtual Function (rev 01)
Subsystem: Intel Corporation I350 Ethernet Controller Virtual Function
Flags: bus master, fast devsel, latency 0, IOMMU group 31
Memory at fb900000 (64-bit, prefetchable) [virtual] [size=16K]
Memory at fb920000 (64-bit, prefetchable) [virtual] [size=16K]
Capabilities: [70] MSI-X: Enable+ Count=3 Masked-
Capabilities: [a0] Express Endpoint, MSI 00
Capabilities: [100] Advanced Error Reporting
Capabilities: [150] Alternative Routing-ID Interpretation (ARI)
Capabilities: [1a0] Transaction Processing Hints
Capabilities: [1d0] Access Control Services
Kernel driver in use: igbvf
Kernel modules: igbvf
これで全ポートに VFs を生やす設定を入れて28ポートNICとして認識されました。 ip addr の結果がキモくておもしろかったです。
後回しにした ARI について
ARI とは？ Alternative Routing-ID Interpretation (ARI) のことらしい。
検索した出てきたドキュメントによると気にしなくても強制的に有効になるっぽい？
https://www.intel.co.jp/content/www/jp/ja/docs/programmable/683140/21-4-4-0-0/sr-iov-implementation.html
SR-IOVを有効にすると、ARI機能は常に有効になります。
lspci の結果を見ても有効になってそうなので気にしないことにしました。
おしまい
